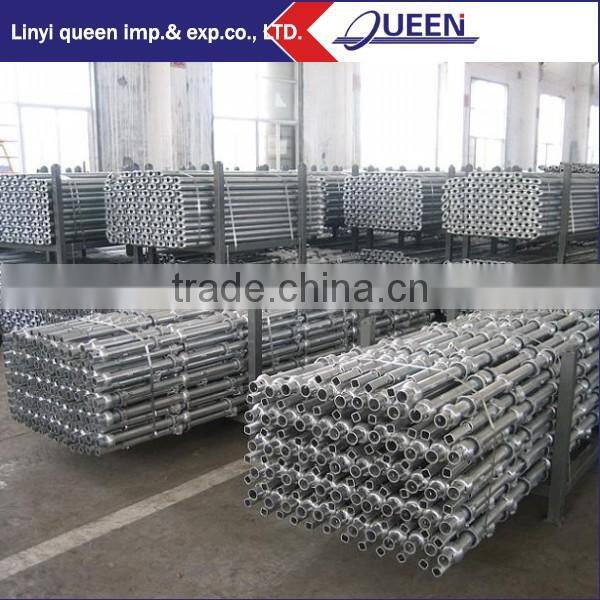

Standard Zinc-Plated Cuplock Scaffolding System for Saudi Arabia

Name: Standard Zinc-Plated Cuplock Scaffolding System for Saudi Arabia
Brand: QUEEN
Availability: InStock

FOB Price

US$ 2.5 - 19.5 / Set

1000 Sets(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	QUEEN
Model Number	1500

Packaging Details

by steel pallet

Product Description

Specifications

Saudi Arabia Cuplock
1)Raw material:Q235/Q345
2)Size of pipe:48.3*3.25mm
3)Surface finish:Powder coated/galvanized/HDG

Standard Zinc-Plated Cuplock Scaffolding System for Saudi Arabia

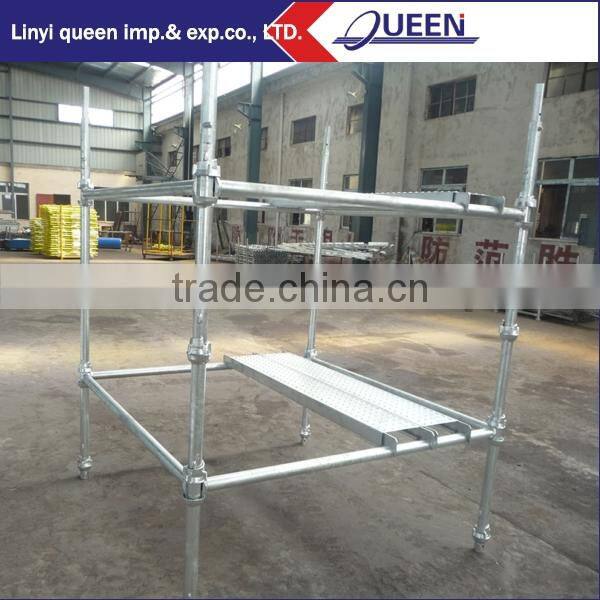

Saudi Arabia cuplock scaffolding Systems is well known Scaffolding Systems for quick locking the scaffoldings by using two cup shaped locks. Saudi Arabia Cup lock system, also known as Cuplock systems is widely used inscaffolding industries because of its easy-to-use and highly Versatile nature.

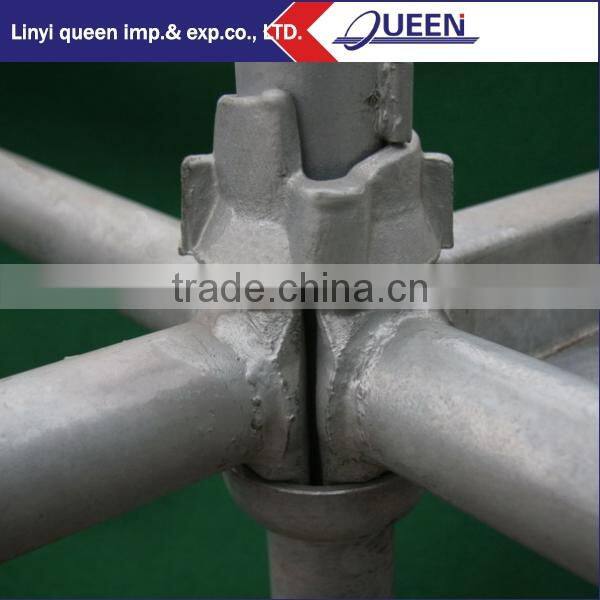

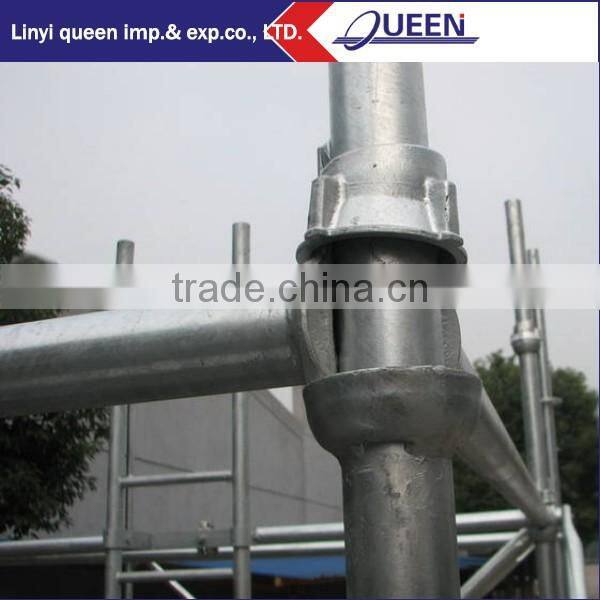

Saudi Arabia Cuplock / Cup lock is a unique node point connection allows up to four Legers to be connected to a standards in one single action - without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique locking make 'cuplock/Cuplock' a fast, versatile and optimized system of scaffolding for scaffolding for construction, demolition and maintenance projects throughout the globe.

Feature

Saudi Arabia Cuplock Scaffolding system - Easy to STAND - say no to nuts and bolts or wedges,Just a simple locking cup at each node point on the standards enables connection of the ends of up to four members in one locking action.
Saudi Arabia Cuplock Scaffolding systems - Versatile!Best suitable for access or formwork support.
Saudi Arabia Cuplock Scaffolding systems - Timely tested and Proven design with safety accessories
Saudi Arabia Cuplock Scaffolding System has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies.
Saudi Arabia Cuplock Scaffolding System - Quick fastening of Ledgers. Only 4 Ledgers can be fastened at one time with firm clamping action of top cup making the joint rigid.
Saudi Arabia Cuplock Scaffolding System - Quick/Fast/Solid erection and dismantling results in time and labour saving.
Saudi Arabia Cuplock Scaffolding System - Widely and Versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved.
Saudi Arabia Cuplock Scaffolding Syatem - Lightweight but high loads carrying capacity.

Specification

Item Name	Saudi Arabia Cuplock Scaffolding
Brand Name	Queen
Raw Material	Q235 /Q345steel Grade

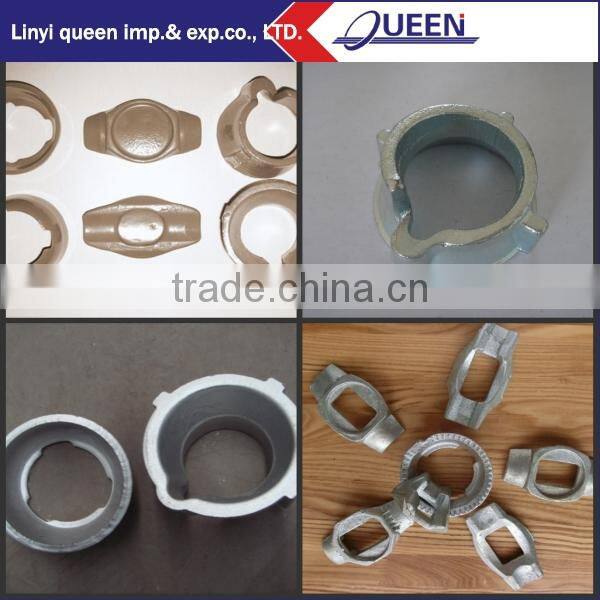

Components	Standard.Ledger .Diagonal brace. Top/Bottop Cup/ Ledge Blade
Surface finish	Electric Galvanized/HDG/Powder coated
Size	Pipe size:48.3mm
	Thickness:3.25mm
Usage	Widely used in Bridge .Tunnel.Peterifaction.Shipbuilding .railway,Airport. Dock Industry and Civil Building

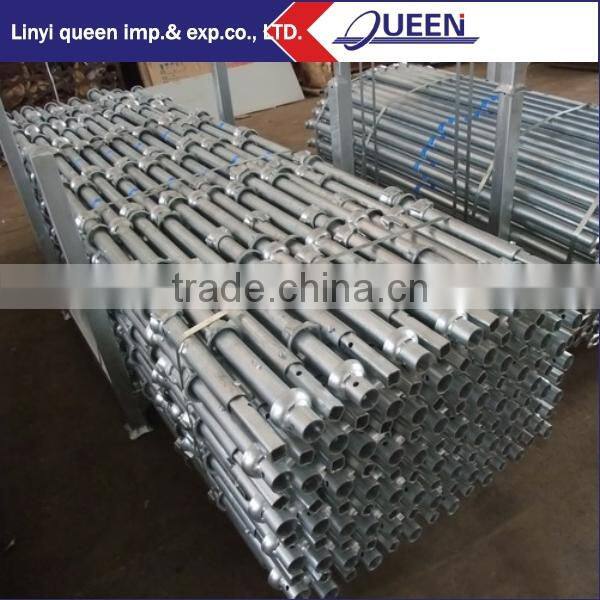

Packing	By Steel pallet or bulk

(48.3mm x 3.25mm, Q235, HDG)
Saudi Arabia Cuplock scaffolding Description
Standard	48.33.25500mm	3.5kg
	48.33.251000mm	5.7kg
	48.33.251300mm	8.0kg
	48.33.251500mm	8.75kg
	48.33.251800mm	10.6kg
	48.33.252000mm	11.4kg
	48.33.252500mm	14.0kg
	48.33.253000mm	16.70kg
	48.33.254000mm	20.36kg

(48.3mm x 3.25mm, Q235, HDG)
Saudi Arabia Cuplock scaffolding Description
Ledger	48.33.25650mm	2.8kg
	48.33.25914mm	3.6kg
	48.33.251065mm	4.10kg
	48.33.251150mm	4.7kg
	48.33.251570mm	5.76kg
	48.33.251829mm	6.62kg
	48.33.252130mm	7.95kg
	48.33.252438mm	9.05kg
	48.33.253050mm	11.30kg

(48.3mm x 3.25mm, Q235, HDG)
Saudi Arabia Cuplock scaffolding Description
Diagonal brace	48.33.25915mm	3.4kg
	48.33.25915mm	3.4kg
	48.33.251150mm	4.04kg
	48.33.251572mm	5.34kg
	48.33.251829mm	6.13kg
	48.33.252130mm	7.06kg
	48.33.252438mm	8.01kg
	48.33.253050mm	9.90kg

Company Profile

Linyi Queen Imp. & Exp. Co., Ltd.

Since 2000, we has been specialized in manufacturing scaffoldings, kwik stage/ringlock/cuplock/frame scaffoldings, steel planks, couplers, accessories & formwork parts, and hardware, ratchet wrench tools, garden tools, sockets and accessories. We expand our products to hand tools, automotive tools, etc. We have more than 10 years of production and export experience. Each tool produced by Queen is in the best quality, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. We have a highly experienced producing team, which maintains top level of every stage of the producing progress. Each team of workers is led by supervisor who monitors day to day works. Automated welding and robot systems are widely used. Today, we have customers in over 35 countries around the world. Our products are engineered for safety, strength and flexibility to meet international standards within this industry. It is important for structural engineers, scaffolding factories and formwork specialists. In terms of working processes, we have expertise in iron casting, steel forging and thread rolling. We have a complete quality control system, which guarantees the high quality of our products and makes sure all progress is made to schedule. With all our technical knowledge and capacity, if you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
