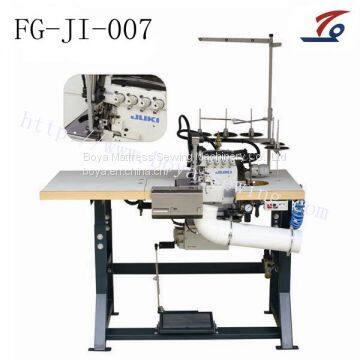

Boya industrial JUKI sewing machine for mattress FG-JI-007 series

This flanging machine is mainly used for flanging mattress panel and over-thick fabric. It can also sew that non-woven fabric together with the panel.


1.Adopt JUKI6900 sewing head made in Japen and double-bolts,straight pin design.
2.The Sewing head adopts automatic self oiling provide system,so it can lubricate each working part fully.
3.Push-button type stitch length repulator, no need for changing the cam.
4.With thread & needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread skipping.
5.Double-needle-five-thread synchronous structure and strong gear cloth-feeding system ensuring feeding precision and perfect a seam.
6.The thickness of fabric can be easily converted.
7.The sewing speed is controlled with imported needle position motor and control box.
8.Equipped with pneumatic auto presser foot, equipped with special encoder to position needles.
9.Running steadily and low noise.

Main technical parameters

Model numberJUKI 6900head3000RPMMax rotating speed25mmFlanging width10-70mmFlanging thickness2—5mmStitch lengthJUKI MACHINE OIL 18LubricationDO*5 21#Needle model2.0,3.0,5.0mmNeeele gauge0.5—0.8 MPaAir pressure600WTotal power220V 50/60 HzPower220V 50/60 Hz

Welcome to contact us:
