Boya industrial flatlock sewing machine FG-ST-B
- 8 Set / Sets per Month
- Guangzhou
- T/T
- 10 days
- Xin Butterfly Brand FN Three-wire & four-wire overlock sewing machine
- 434Multi-function household overlock sewing machine three-wire four-wire Hemming machine
- Four-wire edging machine, Multi-function four-wire overlock machine, Multi-functional household four-wire overlock machine
- 309 carpet overedging machine MATS by machine
- Flange machines JUKI sewing head flanging machine for making mattress sewing equipment FG-JI-007
- Flange machine Taiwan sewing head mattress sewing machine sewing equipment FG-006
Product Details
Brand Name: | Boya | Place of Origin: | China | Model Number: | FG-ST-B |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 2 years | Condition: | New |
Voltage: | 220V | Power(W): | 1.5KW | Automatic Grade: | Semi-Automatic |
Max. Sewing Thickness: | below or equal to 20mm | Max. Sewing Speed: | 10-3000M turn/minute |
Product Description

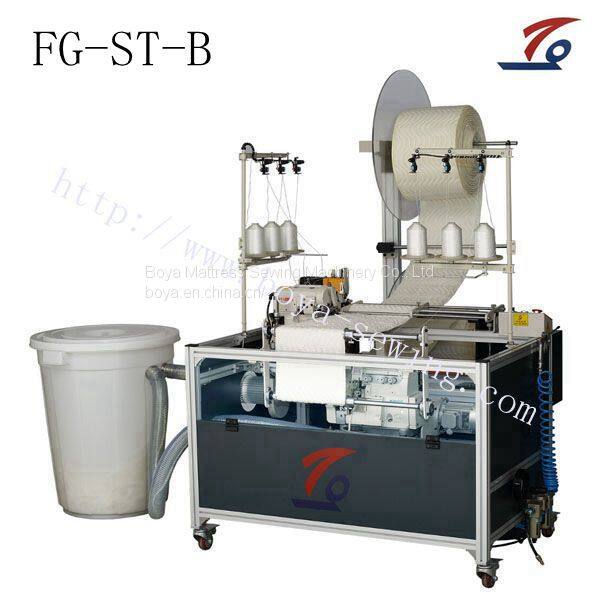

FG-ST-B Mattress Double Sewing heads Flanging Machine
(Boya industrial flatlock sewing machine FG-ST-B)
Product Description
This machine is mainly used for double serge mattress edge panel. It has two upper and lower independent heads. With variable frequency conversion control and simultaneous drive function, motor-driven polyurethane roller feed, the Flanging machine also allows fabric tensioning and adjustable winding. It can cut excessive fabrics automatically.
The double-headed synchronous locking machine is also equipped with a waste collector, thread break detector and material splice auto-stop device. It is a new smart Flanging machine!
Technical Specification
Flanging mode | one side & two sides available |
Flanging width | 6.0mm |
Applicable fabric width | 50-500mm(adjustable) |
Flanging speed | 10-3000/min turn |
Max. Flanging thickness | ≤20mm Medium density sponge bud fabric |
Needle Pitch | 5mm |
Max. Presser lift | 8mm |
Rated Air Pressure | 0.8Mpa |
Power | 1.5KW |
