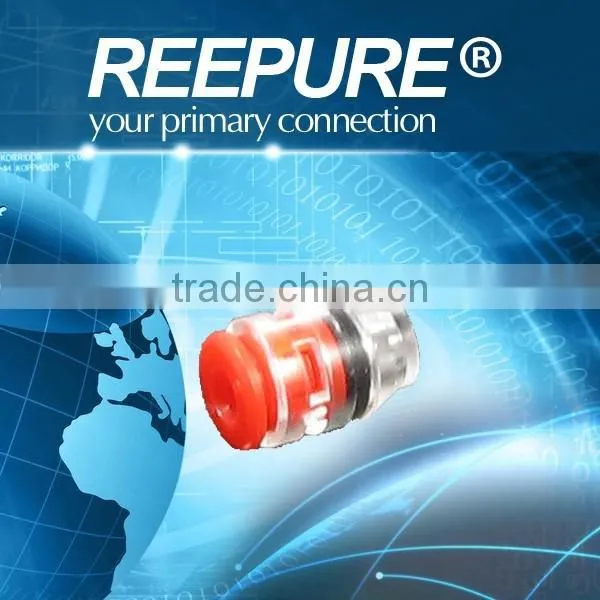

Micro Duct Endcap
To keep Micro Duct networks free of debris, seal the system with Push-Fit Micro Duct End Cap. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the Micro Duct into the Micro DUct End Cap. The Micro Duct End Cap can be attached and removed 10 times while still maintaining the same high performance characteristics.
Push-Fit Micro Duct End cap operates at 16 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Micro Duct End Cap Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |
Micro Duct End Cap Specification:
Reepure code | Description |
MEC-3 | 3mm end connector |
MSC-4 | 4mm end connector |
MSC-5 | 5mm end connector |
MSC-6 | 6mm end connector |
MSC-7 | 7mm end connector |
MSC-8 | 8mm end connector |
MSC-10 | 10mm end connector |
MSC-12 | 12mm end connector |
MSC-12.7 | 12.7mm end connector |
MSC-14 | 14mm end connector |
MSC-16 | 16mm end connector |
MSC-18 | 18mm end connector |
1. Can I get some samples?
Yes, Sample order is available for quality test and market test .But you have to pay the postage. And we can return to you when you place formal order.
2. What’s delivery time?
It usually takes about 3-5 working days for small order and 10 days for big order when receiving your purchasing order.
3. What’s your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What’s your warranty terms?
We offer 12 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be quickly produced according to your order .
6. Can I mix different power in one container ?
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping .
8. I would like to know if you have a partner for export?
Yes .Reepure have the right to export and can sell product all over the world .
9. How can I trust you ?
The core of Reepure is honesty and loyalty. our company has been audited and approved ISO9001,Rohs certification. Assessment report will could be sent to you by e-mail. Now we have clients all around the world .
