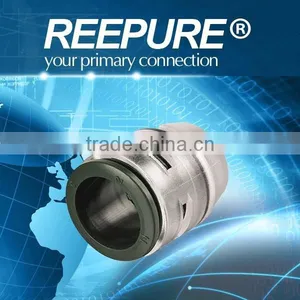

Microduct end plug
To keep MicroDuct networks free of debris, seal the system with microduct end plugs. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the MicroDuct into the microduct end plug. The microduct end plug can be attached and removed 10 times while still maintaining the same high performance characteristics.
Microduct end plugs operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
microduct end plug Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |
Microduct end plug Specification:
Reepure code | Description |
MEC-3 | 3mm end connector |
MEC-4 | 4mm end connector |
MEC -5 | 5mm end connector |
MEC -6 | 6mm end connector |
MEC -7 | 7mm end connector |
MEC -8 | 8mm end connector |
MEC -10 | 10mm end connector |
MEC -12 | 12mm end connector |
MEC -12.7 | 12.7mm end connector |
MEC -14 | 14mm end connector |
MEC -16 | 16mm end connector |
MEC -18 | 18mm end connector |
