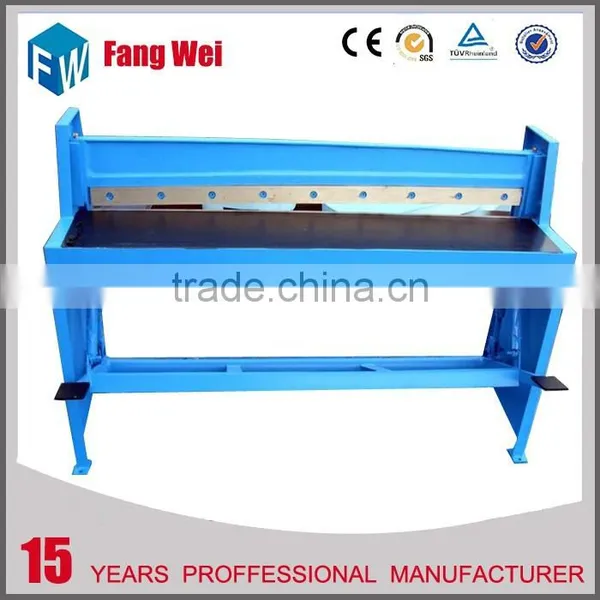

foot shear machine
(1) Used for mild steel, aluminum copper, brass zinc plastic
(2) Environmental Machine low consumption
(3) High Efficiency
(4) Easy Operation
(5) Durable,high Precision
(6) Competitive Price,Timely
1.Performance
This series shearing machine with good looks, with new construct, adopts slide guider, Foot pull spring uses slide pivot point fixed type, let the operate power reduce 2/3, this series shearing machine installed eccentric swage, with high shearing quality, weight is small, easy to move it, widely used in thin steel sheet shearing.
2.The major parameters
|
Model Item |
Unit |
Q11-1*1000 |
Q11-1*1300 |
Q11-1*1500 |
||
Shearing thickness |
mm |
1 |
1 |
1 |
||
Shearing length |
mm |
1000 |
1300 |
1500 |
||
Shearing angle |
° |
1° 30 ' |
1° 30 ' |
1° 30 ' |
||
Overall dimension |
Length |
mm |
1200 |
1500 |
1800 |
|
Width |
mm |
650 |
650 |
650 |
||
Height |
mm |
950 |
950 |
950 |
||
Total weight |
kg |
250 |
280 |
320 |
||
Packaging Detail: Wood case in export carton, international package standard
Delivery Detail: 7~10 working days
--We always test the machine one by one, make sure it works well before leaves our factory.
--Any question, we will supply advice and headling method when you need help.
--We offer 1 year guarantee for new machine since it leaves factory (within guarantee), we offer free part and send it to you, you just pay the Express cost.
Thank you for coming. If you have any question or advice, please feel free to contact us. We are expecting for your inquiry.
