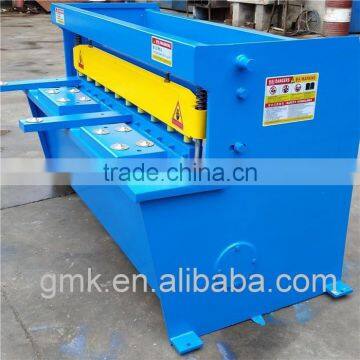

Q11 3*1000Electric Shearing Machine
1.Performance
- Uses single-side mechanical drive, blade made by material 6CrW2Si.
- Widely used in motor, electrical, automobile industries and all shops of other industries where sheet metal cutting is required.
- Simple construction,easily operation and safe, sensitive and reliable control
- Easy maintenance, low energy consumption.
Model Item |
Unit |
Q11-3*1000 |
Q11-3*1300 |
Q11-3*1600 |
Q11-3*2000 | Q11-4*1300 |
Q11-4*1600 |
||
Shearing thickness |
mm |
3 |
3 |
3 |
3 | 4 |
4 |
||
Shearing length |
mm |
1000 |
1300 |
1600 |
2000 | 1300 |
1600 |
||
| Shearing angle | ° | 2° 14 ' | 2° 14 ' | 2° 14 ' | 2° 14 ' | 2° 14 ' | 2° 14 ' |
||
Travel times |
no. |
33 |
33 |
33 | 33 | 33 |
33 |
||
The scope of behind |
mm |
400 |
500 |
500 |
500 | 500 |
500 |
||
Motor power |
KW |
4.5 |
4.5 |
4.5 |
4.5 | 4.5 |
4.5 |
||
Overall dimension |
Length |
mm |
1600 |
1900 |
2200 |
2800 | 1900 |
2200 |
|
Width |
mm |
1100 |
1100 |
1100 |
1100 | 1100 |
1100 |
||
Height |
mm |
1200 |
1200 |
1200 |
1200 | 1200 |
1200 |
||
Packaging Detail: Wood case in export carton, international package standard
Delivery Detail: 10~15 working days
--We always test the machine one by one, make sure it works well before leaves our factory.
--Any question, we will supply advice and headling method when you need help.
--We offer 1 year guarantee for new machine since it leaves factory (within guarantee), we offer free part and send it to you, you just pay the Express cost.
Thank you for coming. If you have any question or advice, please feel free to contact us. We are expecting for your inquiry.
