Ultrasonic Flaw Detector

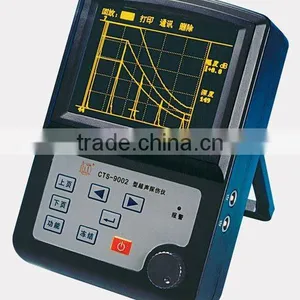

Ultrasonic Flaw Detector thumbnail-1

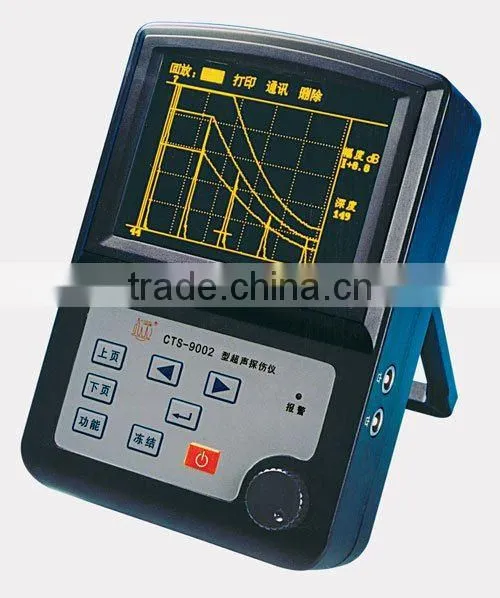

Ultrasonic Flaw Detector photo-1
US$ 6,500 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KBD
Model Number:
CTS-9002
Contact Supplier Request Quote Chat Now
KBD Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name KBD
Model Number CTS-9002
Power Electronic
Usage Deformation Testing Machine

Specifications

WE CAN SUPPLY Ultrasonic Flaw Detector



Frequency Range 0.5~5MHz (-3dB)
Attenuation Control 0~110dB in the steps of 0.1dB
Vertical Linearity Error ≤5%
Dynamic Range ≥30dB
Detection Range 3~4800mm(Longitudinal wave in steel)
Vertical Linearity Error ≤0.5%
Rectification full Wave, half wave positive or negative settings
Rejection 0~80%
Pulse Shift Range 0~5000mm(Longitudinal wave in steel)
Power Requirements Main Machine: DC 12V; Charger: AC220V±22V,50Hz±1Hz
Detection Sensitivity ≥52dB
Far Distance Resolution ≤5mm
Weight about 1.8kg with batteries
Dimensions(H×W×T) 165mm×85mm×240mm
