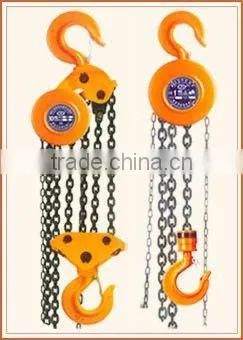

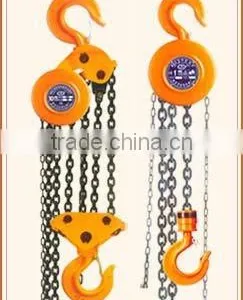

Help CenterCHAIN HOIST HSZ-1
US$ 5 - 100
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
kbd
Model Number:
HSZ
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
kbd
Model Number
HSZ
Specifications
HSZ series chain block is designed with a transmission mechanism of symmetrically arranged two-step spur gears.| Model | HSZ-1/2 | HSZ-1 | HSZ-1/2 | HSZ-2 | HSZ-3 | HSZ-5 | HSZ-10 | HSZ-20 | |
| Capacity T | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lifting height (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Test load (T) | 0.75 | 1.5 | 2.25 | 3.0 | 4.5 | 6.25 | 12.5 | 25 | |
min Headroom (hook to hook) Hmin (mm) |
240 | 270 | 347 | 380 | 470 | 600 | 710 | 1000 | |
| Chainpull to lift full load (N) | 221 | 304 | 343 | 314 | 343 | 381 | 392 | 392 | |
| No.of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Diameter of bad chain (mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |

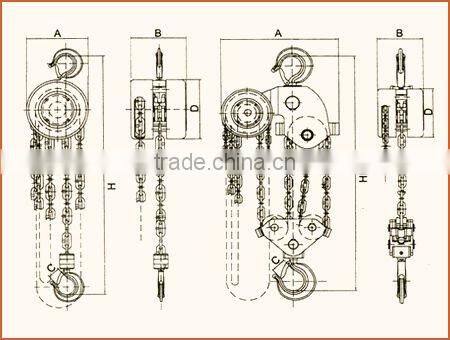

| Dimensions (mm) | A | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 580 |
| B | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 189 | |
| C | 24 | 28 | 34 | 34 | 38 | 48 | 64 | 82 | |
| D | 120 | 142 | 278 | 142 | 178 | 210 | 210 | 210 | |
| Net weight (Kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 155 | |
| Gross Weight (Kg) | 10 | 13 | 20 | 17 | 28 | 45 | 83 | 193 | |
| Packing mcasurement (LWaH) cm | 28x21x17 | 30x24x18 | 34x29x20 | 33x28x19 | 38x33x20 | 45x39x24 | 55x51x29 | 70x46x75 | |
Extra weight per meter of extra lift (Kg) |
1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |
