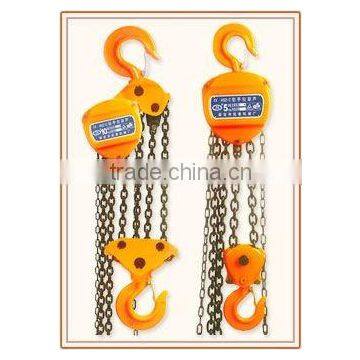

Name: CHAIN HOIST HSZ-2
Brand: kbd
SKU: 143352530
Availability: InStock

ALL CATEGORIES

CHAIN HOIST HSZ-2

Specifications

Rmarks:inaddition to the standard lift we accept orders to 12m lift.

Model		HSZ-C/	HSZ-C1	HS-C1¹/₂	HS-C2	HS-C3	HS-C5	HS-C10	HS-C20
Capacity (T)		0.5	1	1.5	2	3	5	10	20
Standard lifting height (m)		2.5	2.5	2.5	2.5	3	3	3	3
Test load (T)		0.75	1.5	2.25	3.0	4.5	6.25	12.5	25
Headroom (drawn colse up) Hmin (mm)		258	274	347	396	486	616	700	1000
Chainpull to lift full load (N)		221	304	343	314	343	382	392	392
No.of load chain fall lines		1	1	1	2	2	2	4	8
Diameter of bad chain (mm)		6	6	8	6	8	10	10	10
Dimensions (mm)	A	125	147	183	147	183	215	360.5	585
	B	108	122	139	122	139	162	162	189
	C	24	28	34	34	38	48	64	82
	D	134	154	192	154	192	224	224	224
Net weight (Kg)		8	10	16	14	24	36	68	156
Gross Weight (Kg)		10	13	20	17	28	45	83	194
Packing mcasurement (LWaH) cm		28x21x17	30x24x18	34x29x20	33x28x19	38x33x20	45x39x24	55x51x29	70x46x75
Extra weight per meter of extra lift (Kg)		1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4
