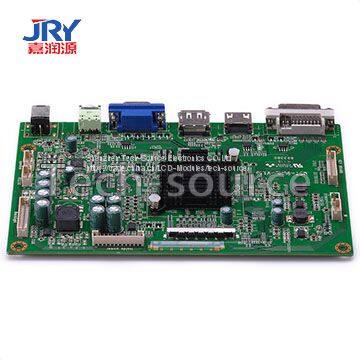

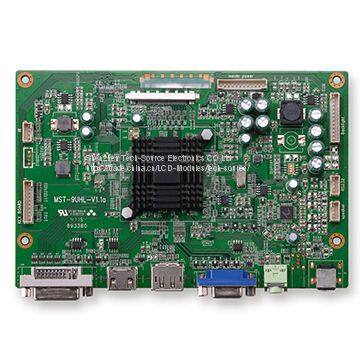

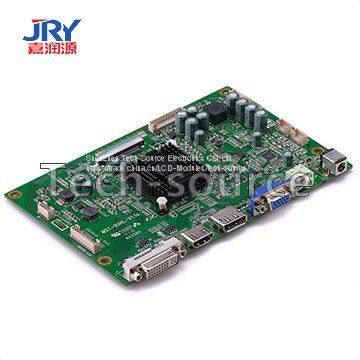

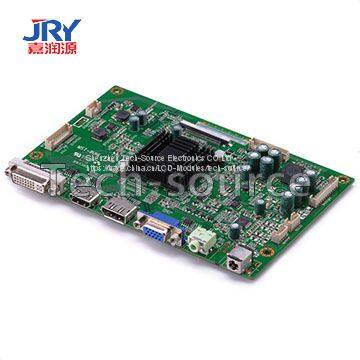

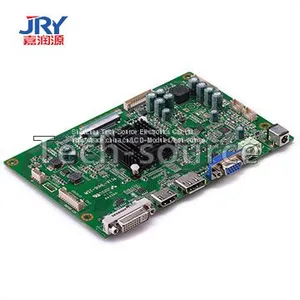

Help CenterLED Monitor Board, UHD/60Hz/3840*2160/QHD/144Hz/2560*1440/144Hz
Related Products
-
UHD Monitor Controller Board 4096X2160@60Hz Supports HDMI+DVI+DPNegotiableMOQ: 200 Pieces -
8k/5k/4k Professional Monitor, the Best Quality Monitor BoardNegotiableMOQ: 200 Pieces
-
FHD LED Display Control Board, VGA+HDMINegotiableMOQ: 500 Pieces
-
LED Display Control Board With VGA and HDMI for FHDNegotiableMOQ: 500 Pieces
-
LED Display Control Board With VGA and HDMI for FHDNegotiableMOQ: 500 Pieces
Model: JRY-L06A-N
Functions: DVI+DP+HDMI+VGA+AUDIO
Supports panel: 4096*2160
Level of security: Secret
Summary
Specific features
A/D drive plate appearance figure
DVI analog part of the default table support mode
Input/output interface definitions
Main structure and size chart
Transport, storage, use requirement
PCB material UL certification number
PCB material CQC certification number
1. General description
MST9U13, total chip SOC that for LCD monitors with panel resolutions up to 4096x2160p at 60Hz
2. Key features include:
(1) Integrated four high-quality scaling engine for processing up to 4 4-2K at 30Hz AV stream
(2) Integrated 4 combo digital ports (supports HDMI/DVI/DP/MHL) and 1 analog input ports (supports analog RGB compliant input ports)
(3) Built-in V-by-one transmitter, supports up to 4096x2160p at 60Hz LCD panel
(4) Supports audio in/out with L/R stereo
(5) Supports four windows PIP/PBP
3. Audio interface:
(1 ) Supports 1 L/R audio circuit input or 1 road L/R headphone output
(2) Built-in high-performance Class D power amplifier
(3) Maximum power output for 2 x10w Ω (8)
4. Signal input
(1) One analog VGA inputs, supports up to 205MHz (up to UXGA at 75Hz)
(2) One HDMI inputs port, supports MHL input
