Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > MCLW11NC-20*2300 Hydraulic Symmetric Three Roller Plate Rolling Machine,bending Mchine

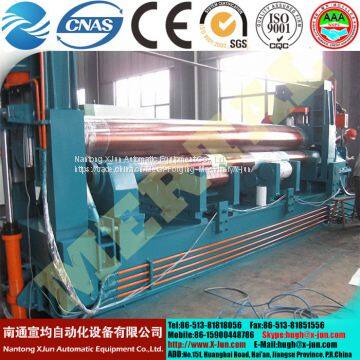

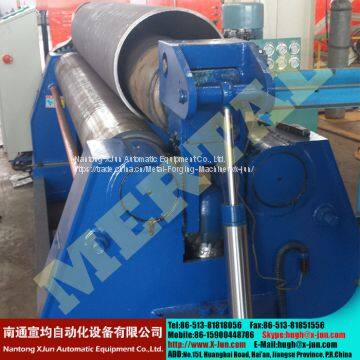

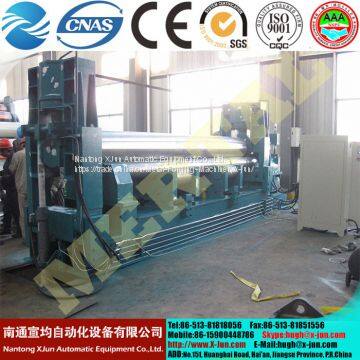

MCLW11NC-20*2300 Hydraulic Symmetric Three Roller Plate Rolling Machine,bending Mchine
US$ 5000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mertal
Place of Origin:
China
Model Number:
11NC-30X4000
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
60 days
Related Products
-
Hot! MCLW11NC Hydraulic Symmetric Three Roller Plate Rolling MachineUS$ 5000 - 100000MOQ: 1 Set -
Mechanical Three Roller Plate Bending Machine,, Plate Rolling Machine Export GermanyUS$ 5000 - 100000MOQ: 1 Set
-
MCLW11NC Hydraulic Symmetric Three Roller Plate Bending Machine,plate Rolling MachineUS$ 5000 - 100000MOQ: 1 Set
-
MCLW11-25X2500 Mechanical Three Roller Plate Bending Machine, Plate Rolling Machine ExportUS$ 5000 - 100000MOQ: 1 Set
-
Small Diameter Rolling! MCLW11NC Hydraulic Symmetric Three Roller Coiling MachineUS$ 5000 - 100000MOQ: 1 Set
Brand Name
Mertal
Place of Origin
China
Model Number
11NC-30X4000
Certification
ISO9001 CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
20tons
Dimension(L*W*H)
6400*2350*3200
Condition
New
Voltage
380V
Power(W)
37KW
Mechanical Three Roller Symmetrical Bending Machine
Mechanical Three Roller Symmetrical Bending Machine Features: The machine structure type symmetric three roller, roller in two central symmetrical position under the roller moves vertically through the screw nut worm drive and get the two lower rollers rotational movement, through the output gear reducer with lower tooth engagement provide torque roll sheet. the machine is compact structure, easy operation and maintenance. the machine requires the use of other equipment to complete pre-bending.
| MCLW11 Mechanical 3-roller plate rolling machine technical parameters | ||||
| Model | Max bending thickness(mm) | Max plate width(mm) | Diameter of upper roller(mm) | Main motor power(kw) |
| MCLW11-4x1500 | 4 | 1500 | 150 | 3 |
| MCLW11-6x1500 | 6 | 1500 | 160 | 4 |
| MCLW11-6x2000 | 6 | 2000 | 170 | 5.5 |
| MCLW11-6x3200 | 6 | 3200 | 220 | 7.5 |
| MCLW11-8x2000 | 8 | 2000 | 185 | 5.5 |
| MCLW11-8x2500 | 8 | 2500 | 240 | 7.5 |
| MCLW11-12x2000 | 12 | 2000 | 240 | 7.5 |
| MCLW11-12x2500 | 12 | 2500 | 260 | 7.5 |
| MCLW11-12x3000 | 12 | 3000 | 280 | 11 |
| MCLW11-16x2000 | 16 | 2000 | 260 | 7.5 |
| MCLW11-16x2500 | 16 | 2500 | 280 | 11 |
| MCLW11-16x3200 | 16 | 3200 | 340 | 15 |
| MCLW11-20x2000 | 20 | 2000 | 280 | 15 |
| MCLW11-20x2500 | 20 | 2500 | 340 | 15 |
| MCLW11-25x2000 | 25 | 2000 | 330 | 15 |
| MCLW11-25x2500 | 25 | 2500 | 370 | 22 |
| MCLW11-30x2500 | 30 | 2500 | 390 | 30 |
| MCLW11-30x3000 | 30 | 3000 | 450 | 37 |
