Home > Products > PU Air Duct Panel > Smooth surface aluminum foil compound Polyurethane/PU air duct panel
Smooth surface aluminum foil compound Polyurethane/PU air duct panel
- 10000 Square Meter / Square Meters per Month
- Qingdao
- T/T D/P D/A
Product Details
Place of Origin: | Shandong, China | Brand Name: | HUAHAI | Model Number: | HH PU air duct panel |
Panel Material: | Metal | Type: | Other, PU air duct panel |
Product Description
Specifications
PU air duct panel1.aluminum foil+PU foam +alum foil
2.firepoof classB
3.Thermal conductivity 0.022w/k
Aluminum foil pre-insulated PU duct panel is made of Polyurethane/PU foam with smooth surface or embossed aluminum foil/color steel/galvanized steel surface, It can be cut by special cutting tools, install different flanges to make large HVAC compound air duct system, no need to add insulation layer.
HUAHAI compound pre-insulated pu duct panel is a new green materials, has passed ISO9001:2008 Quality Management System Certification and ISO 14001:2004 Environmental Management System Certification and British BS476 fireproof test, SGS.

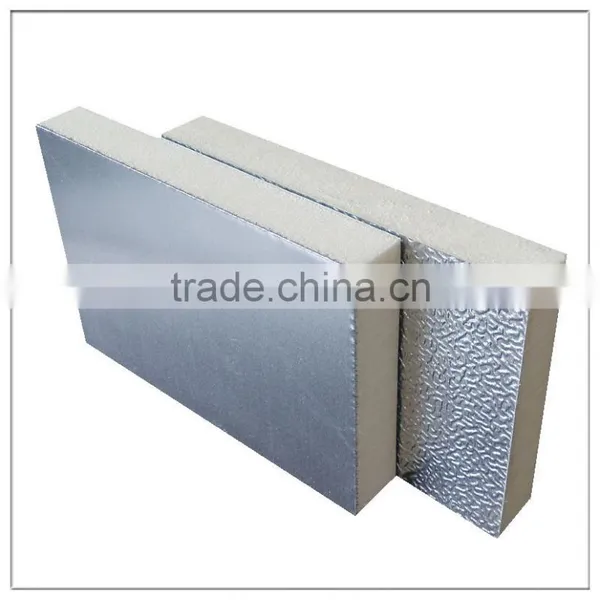

1.picture of pu duct panel
2.Type of PU air duct panel
Item No.: HH-TZ1
Material: Double side aluminum foil pre-insulated air duct panel
Item No.: HH-TZ3
Material: Aluminum foil+pre-insulated pu air duct panel +steel sheet/GI
Item No.: HH-TZ4
Material: Double side color steel pre-insulated pu air duct panel
3.A Brief Introduction of PU air duct panel
1.pu air duct panel is a kind of new building material which is composite with PU foam and different covering metal materials ,such as aluminum foil , color steel, GL .It is good appearance, beautiful color , light strength and easy installatiion. It is also fire-proof, water-proof and of good insulation property.
2.high strength"five in one" structure
4.Dimension of pu air duct panel
2950/3950mm*1200mm*20mm
2950/3950mm*1200mm*25mm
2950/3950mm*1200mm*30mm
5.Performance index of pu air duct panel
Density | 50-52kg/m3 |
Thermal conductivity | 0.022w/m.k |
Compressing strength | 300k pa |
Aluminum foil thick | 60-80micron |
color steel thick | 0.18-0.2mm |
Bending strength | 1.05m pa |
Fire proof performance | Class B |
Water absorption | 1.9% |
Smoke density | 2% |
Working temperature | -150°Cto150°C |
size | 2950/3950*1200*20/25/30mm |
Notes
1. the standard width pu air duct panel is 1200mm.
2. Export standard plastic bag and carton,10pcs per pack
3.Delivery detail: with 7 days after receiving the deposit money.
6.Price validity:30 days.
6.Advantage of pu air duct panel
1.Excellent flame retardant properties, open flame only carbonation does not burs.
2.Acid and alkali resistance, salt fog resistance.
3.Favorable heat preservation performance.
4.quick and easy to install.
5.beautiful appearance.
6.safe, light,environmental protection.
Thengzhou City Huahai New Thermal Insulation Material Co.,Ltd. is professional manufacturer of PIR/PU/Phenolic air duct panel and accessories, PU cold room panel, PU wall panel, PU roof panel.
