Specifications
PIR air duct panel1.aluminum foil+ PIR/PU foam+ aluminum foil/color steel
2.firepoof class O
3.BS SGS ISO 9001 ISO14001
PIR Air Duct Panel
HUAHAI compound air duct panel is a new green materials, has passed ISO9001:2008 Quality Management System Certification and ISO 14001:2004 Environmental Management System Certification and British BS476 fireproof test.

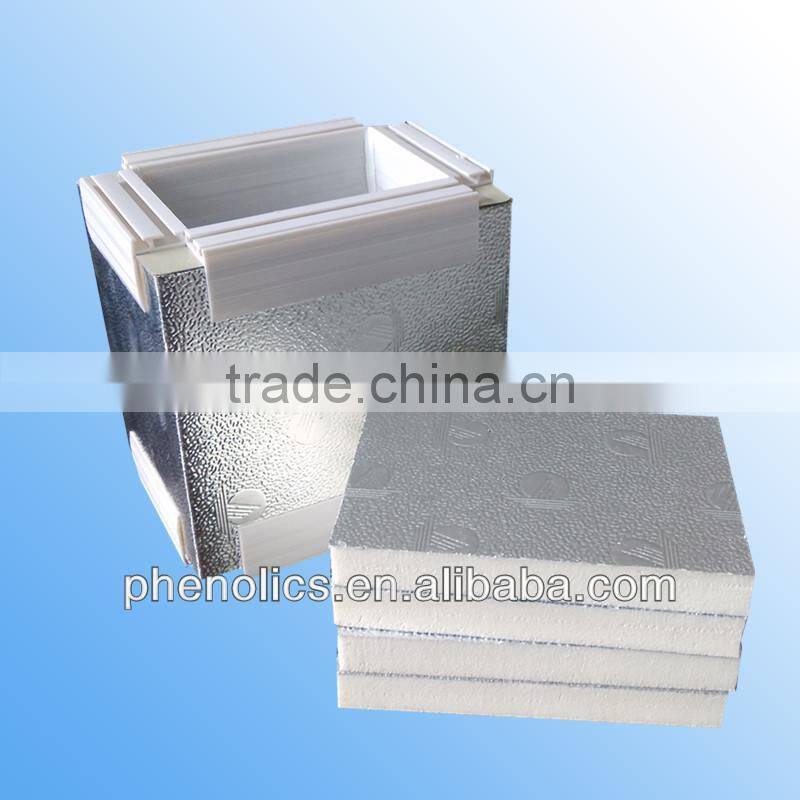

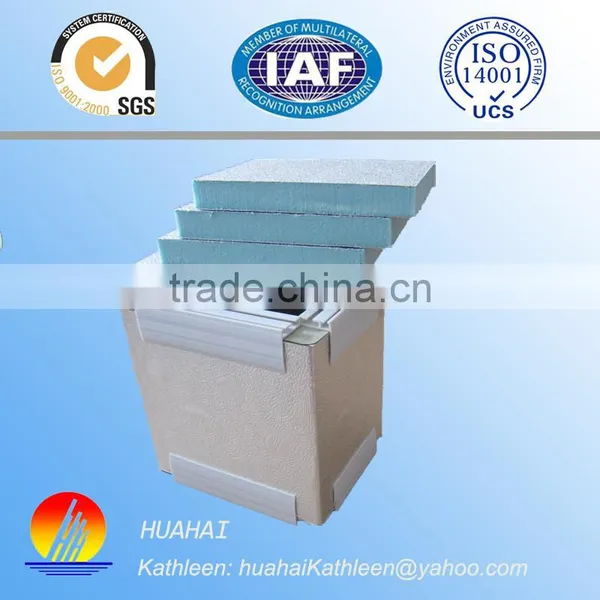

Picture of PIR Air Duct Panel
Type of PIR Air duct panel
Item No.: HH-TZ1
Material: Double side aluminum foil PIR air duct panel
tem No.: HH-TZ2
Material: Aluminum foil+PIR air duct panel +steel sheet/GI
Item No.: HH-TZ3
Material: Double side color steel PIR air duct panel
Dimension of PIR air duct panel
2900/3950mm*1200mm*20mm
2900/3950mm*1200mm*25mm
2900/3950mm*1200mm*30mm
Performance index of PIR air duct panel
PIR foam air duct panel
Density |
55-60kg/m3 |
Thermal conductivity |
0.019w/m.k |
Compressing strength |
300k pa |
Aluminum foil thick |
60-80micron |
| color steel thick | 0.18-0.2mm |
Bending strength |
1.05m pa |
Fire proof performance |
Class O |
Water absorption |
1.9% |
Smoke density |
2% |
Working temperature |
-150°Cto150°C |
| size | 2950/3950*1200*20/25/30mm |
Notes
1. the standard width of PIR air duct panel 1200mm.
2. Export standard plastic bag and carton,10pcs per pack
3.Delivery detail: with 7 days after receiving the deposit money.
Advantage of PIR air duct panel
1.Excellent flame retardant properties, open flame only carbonation does not burs.
2.Acid and alkali resistance, salt fog resistance.
3.Favorable heat preservation performance.
4.quick and easy to install.
5.beautiful appearance.
6.safe, light,environmental protection
Reputation of PIR air duct panel
1 low temperature foaming PIR production,Patent number :ZL00 111275.9
2 by ISO9001:2000 quality certification,ISO14001:2004 environmental certification
3 passed British BS476,NEF Standard
4 passed United Arab Emirates’s National Standards
5 acquired "Chinese Green Environmental Protection Product" Title
6 our production line for this panel is named as “the first line in China”
7 National Fireproofing Materials Quality Supervision Center GB8624-199
Main export countries and regions.
Our air duct panels have been exported to more than thirty countries and regions such as USA , Australia, Korea, Cyprus, Iran, Singapore, India, Thailand, Myanmar, Norway and Canada, Trinidad and Tobago,Peru,Japan, Guam, Ghana,Laos, UAE, Indonesia, Taiwan, Panama, Philippines, etc.
Packaging: PIR air duct panel covered with carton.
Shipping: after 7 days after receicve the deposit.
Thengzhou City Huahai New Thermal Insulation Material Co.,Ltd
Established in 2002, focuse on PIR/PU/Phenolic air duct panel , PU sandwich cold storage panel , PU roof and wall panel and accessories. There are 9 automatic production lines in factory, capacity 22000 m² per day .
We sincerely welcome all customers to contact us for business and cooperation.
