Air Duct Panel
Negotiable
/ Square Meter
1000 Square Meters(Min. Order)
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HUAHAI | |
| Model Number | HH-TZA2 | Type | HVAC Systems |
Product Description
Specifications

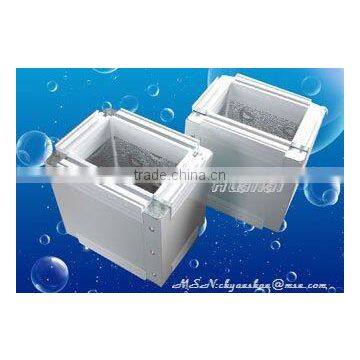

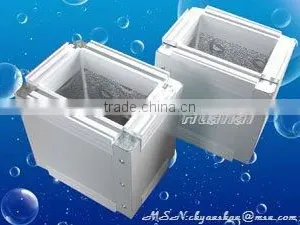

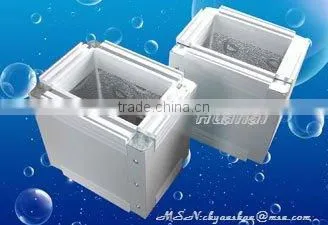

Phenolic foam air duct panel is light in weight, cost effective,incombustible, reinforced with aluminum both sides.HH-TZA2 Air Duct Panel
Core material: phenolic foam
Surface: aluminum foil on one side and colored steel on the other
This is an upgraded product of HH-YZA1.
Advantages
- Proprietary production technology of phenolic resin.
- The aluminum foil and the colored steel is anticorrosion and antibacterial.
- The panel is flame retardant. It’s only carbonized when exposed to fire.
- Pioneered non-gel adhesion technology.
- The six-in-one structure is even stronger.
- The panel is formaldehyde-free, clean and environment-friendly;
- Zero ODP blowing technology.
Specification
ITEM | UNIT | SPECIFICATION |
Density | kg/m3 | 58-70 |
Thermal Conductivity | w/m.k | 0.025 |
Bending Strength | Mpa | 1.05 |
combustion property | ~ | Non-combustible Class A |
Water Absorption Rate | % | 1.9 |
Max Smoke Density | % | 2 |
Dimension Change Rate | % | 0.3 |
Compressive Strength | Mpa | 0.25 |
Service Temperature | ° C | -250 - 150 |
Standard Size | mm | 3900*1200*20 |
