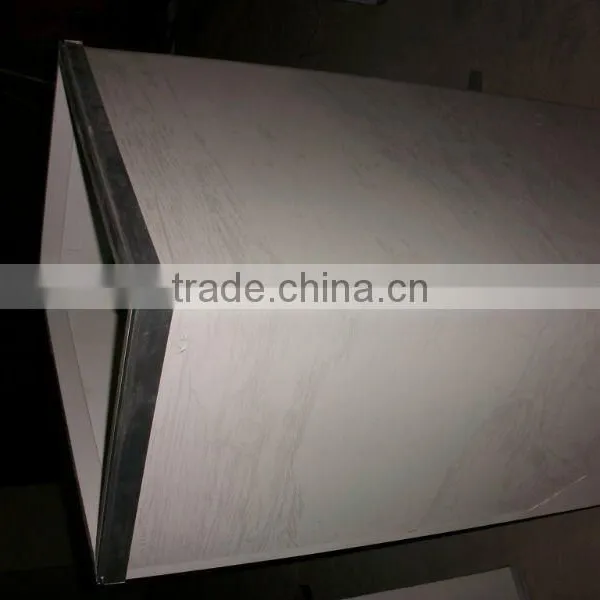

Color Steel Phenolics Air Duct Panel

Specifications

Specifications

Color steel phenolics air duct panel is the update and upgrade product than aluminum foil phenolic air duct panel

HH-Colour Steel Air Duct

The color steel phenolic foam panel is the update and upgrade product than aluminum foil phenolic foam panel. It take the phenolics foam as the core material, with aluminum foil on one side, with color steel on the other side, may also choose other metallic material, for example the aluminum sheet, the galvanized iron sheet and so on,

It have the following advantage

1.Proprietary intellectual property rights material production technology

2.Anticorrosion bacteriostas'coating aluminum foil and the color steel

3.Aluminum foil with foam body non-rubber agglutination, it is the initiate of home.

4.Independent innovation, international leading equipment

5.Ultra strong "Six in one "Unite structur

6.Excellent flame-resistant performance, in the open fire just carbonization does not blast open.

Product Dimension

Dimension: 3900×1200×20+ 1mm

                  3900×1200×25+ 1mm

                  3900×1200×30+ 1mm

Performance Index

1) Density :              60 ~70kg/m³
2) Thermal Conductivity :   0.022W/Mk
3) Compressing Strength:   >300 KPa
4) Bending Strength :      >1.05Mpa
5) Non-Combustible     Class "O"
6) Water Absorption:       <3.0%

7) Dimension Change:      0.51%

8) Working Temperature:    -150 °C to 150°
