high-performance subsea buoyancy material
Solid buoyancy material is a kind of new buoyancy material, which is mainly based on epoxy resin and other thermosetting resin as the base material, adding hollow glass beads, curing agent, stabilizer and other additives, curing curing light composite materials . The material has low density, high compressive strength, good weather resistance, no pollution to the environment, processing and other characteristics, has gradually replaced the traditional buoyancy materials, various types of submersible systems become an important component. It plays an important role in ensuring the buoyancy of the submersible, increasing the payload of the submersible, reducing its dimension and maintaining the structural stability of the system, especially in the construction of large depth submersibles.
TECHINCAL DATA:
buoyancy material can used for subsea up to 7000m. Product of different opplications buoyancys are manufactured upon our advance subsea buoyancy material. We can make subsurface mooring

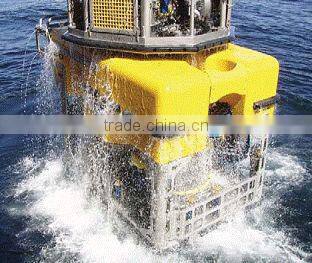

buoys , cable float, pipeline buoys, ROV buoyancy module , special buoys, and other synmatic foam
products.
Our high-performance subsea buoyancy material and synmatic foam have the following performance.
Item |
Unit |
Value |
|||
500m |
1000m |
1500m |
4500m |
||
Density |
g/cm³ |
≤0.4 |
≤0.45 |
≤0.5 |
≤0.6 |
Compressive Strength |
MPa |
≥5 |
≥10 |
≥15 |
≥40 |
Hydrostatic Pressure |
MPa |
≥5 |
≥10 |
≥15 |
≥37 |
Water Absorption |
% |
≤2(5MPa,24h) |
≤2(10MPa,24h) |
≤2(15MPa,24h) |
≤2(40MPa,24h)
|
