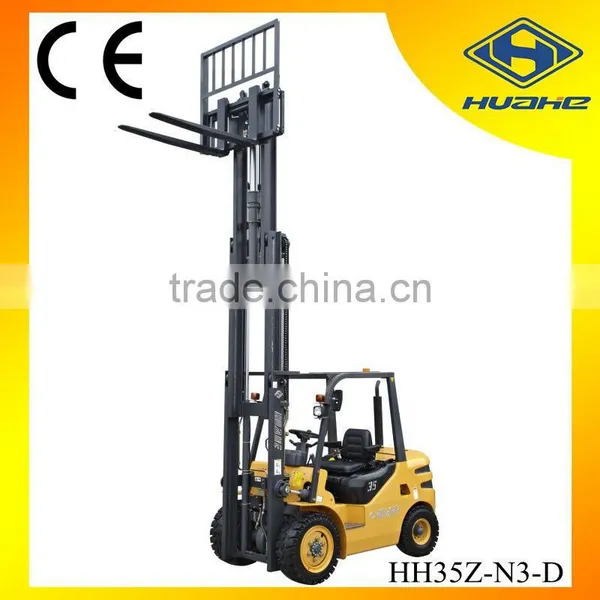

Help Center3.5ton Capacity Container Use Forklift Truck With Chinese Xinchang A490bpg Engine
Related Products
-
2.0T Gasoline Forklift With Nissan K21 Engine With Side ShifterUS$ 1 - 7,500MOQ: 1 Set -
2.5T Standard Gasoline Forklift With Japanese Engine Nissan K21US$ 1 - 7,500MOQ: 1 Set
-
2.5T Gasoline/LPG Dual Fuel Forklift With Nissan EngineNegotiableMOQ: 1 Unit
-
3 Ton Diesel Forklift Truck With Chinese Xinchang C490BPG EngineNegotiableMOQ: 1 Unit
-
3T Diesel Forklift Truck With Chinese XINCHAI 490BPG EngineUS$ 1 - 7,500MOQ: 1 Set
•When the fork lower to almost touch ground, •The seat can be adjusted back and front.
the cargo fork will decelerate to reduce impact The loading capacity of the seat can be
and noise. automaticlly according to body weight.
This series forklift trucks are widely used in factories, warehouses, wharves, ports and so on for loading, unloading and transporting of the packaged goods, besides, can be used for the handling of the bulk goods and unpackaged goods after equipping other attachments of forklift trucks.
Generals |
Model |
Unit |
HH35 |
HH35Z |
|
Power type |
|
DIESEL |
|||
Rated capacity |
Kg |
3500 |
|||
Load center |
mm |
500 |
|||
Dimensions |
Lift height |
mm |
3000 |
||
Free lift height |
mm |
130 |
|||
Fork size (L×W×T) |
mm |
1070×125×50 |
|||
Mast inclination F/R |
Deg |
6°/12° |
|||
Front overhang |
mm |
490 |
|||
Overall Dimensions |
Length to face of fork |
mm |
2730 |
||
Overall width |
mm |
1225 |
|||
Mast lowered height |
mm |
2095 |
|||
Overhead guard height |
mm |
2120 |
|||
Turning radius |
mm |
2510 |
|||
Min. right angle aisle width |
mm |
2200 |
|||
Performance |
Travel speed |
Unload I/II |
Km/h |
9/20 |
|
Full load I/II |
Km/h |
8.8/18.5 |
|||
Lift speed |
mm/s |
480 |
|||
Max. grade ability |
% |
20 |
|||
Max. drawbar pull |
Kn |
13 |
|||
Self weight |
Kg |
4700 |
|||
Wheels & Tires |
Tires |
Front |
|
28×9-15-12PR |
|
Rear |
|
6.50-10-10PR |
|||
Tread |
Front Q |
mm |
1000 |
||
Rear S |
mm |
970 |
|||
Wheelbase |
mm |
1700 |
|||
|
Min. ground clearance (unload/full load) |
Mast |
mm |
152/132 |
||
Frame |
mm |
158/138 |
|||
Drive units & Control |
Battery |
V/Ah |
12/90 |
||
Engine |
Model |
|
XINCHANG A490BPG |
||
Rated output |
Kw/rpm |
39/2650 |
|||
Rated torque |
N.m/rpm |
168/1800 |
|||
Displacement |
cc |
2980 |
|||
Transmission |
Type |
|
Hydraulic |
||
Shift Fwd/Rwd |
|
1/1 Power shift |
|||
Operating pressure |
Mpa |
17.5 |
|||
