You are here:Home > Product Categories > Gate Opener> Swing Gate Operators >articulated swing gate operator
| MB 300 | MB 500 | |
| Input: | 120V/60Hz or 230V/50Hz | |
| Motor voltage: | 24VDC | |
| Motor Power: | 80W each actuator | 120W each actuator |
| Current: | 2A | 3A |
| Speed: | 90°approximately 18 seconds | |
| Max. Gate Open angle: | 120° | |
| Max. Gate Weight: | 300 kgs | 500 kgs |
| Max. Gate Length: | 3 m | 4.5 m |
| Duty Cycle: | 75% | |
| Ambient Temperature: | -20℃~ +50℃ (-4°F to 122°F) | |
| Protection class: | IP44 | |

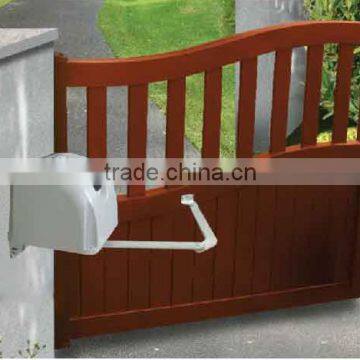

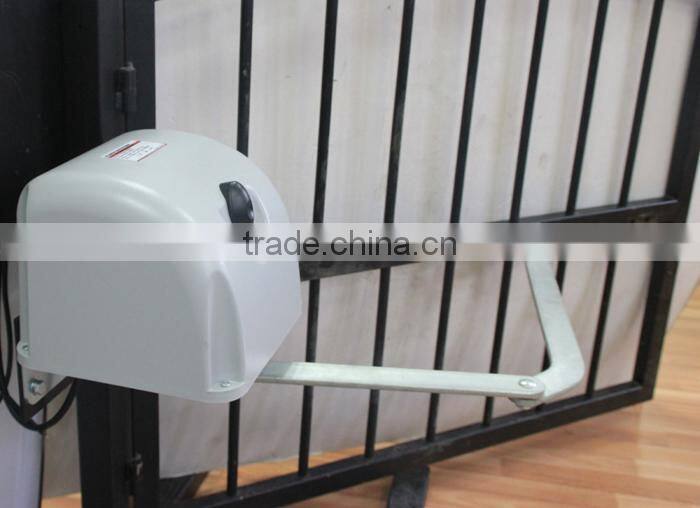

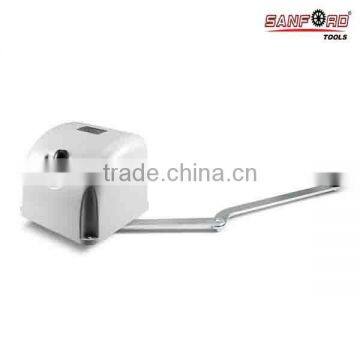

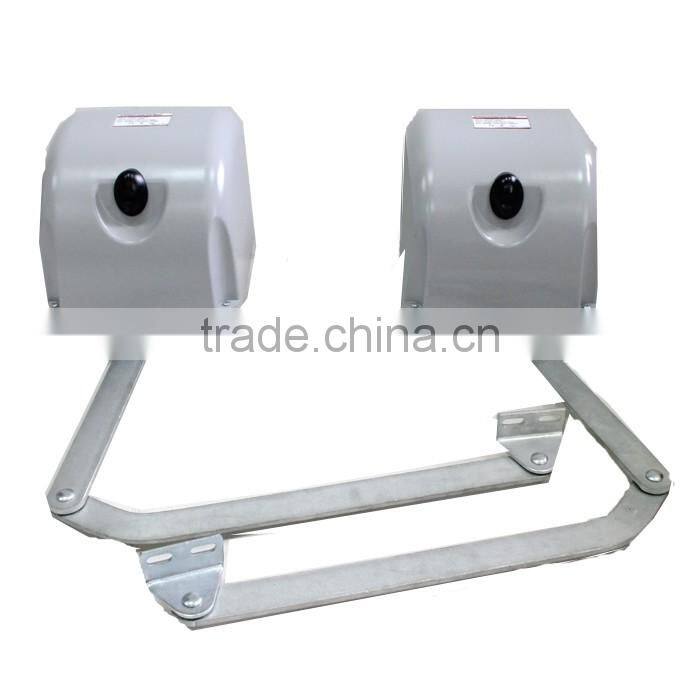

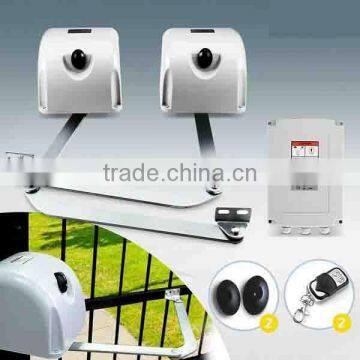

Articulated arm Auto Swing Gate Opener Company
*Easy installation and low maintenance.
*Reliable Mechanical contact limit switch
*Up to 500 kgs weight capacity for each gate(Model no.MB500).
*Max angle for opening gates up to 120 °
*Suitable to “pull to open” or “push to open” without any extra accessory parts.
•Soft start and soft stop
•Dual/Single gate running mode
•Adjustable opening/closing interval between master and slave gate
•Stop/Reverse in case of obstruction during gate opening/closing.
•Built in adjustable auto-close
•Built in max. motor running time (MRT) adjustable for multiple safety protection.
•Digital display indicates the running situation and setting menu
•Highly reliable micro limit switch for easy adjustment

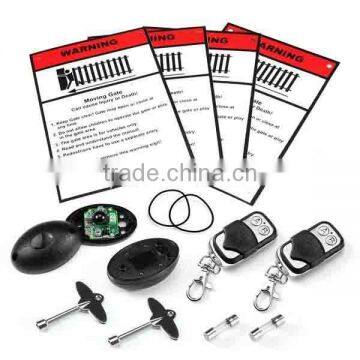

•Can be equipped with a wide range of accessories
