aluminum cover automatic swing gate opener motor
24v dc motors
| Model No. | MK1102M | MK1302M | MK1502 |
| Input | 230V/50Hz or 110V/60Hz | 230V/50Hz or 110V/60Hz | 230V/50Hz or 110V/60Hz |
| Motor voltage | 24VDC | 24VDC | 24VDC |
| Power | 50W | 80W | 100W |
| Current | 2A | 3A | 4A |
| Actuator speed | 16 mm/s | 16 mm/s | 16 mm/s |
| Actuator travel | 385mm | 385mm | 480mm |
| Max. weight of each gate | 200kgs | 300kgs | 400kgs |
| Max. width of the gate | 3m | 3m | 4m |
| Protection class | IP44 | IP44 | IP44 |
Features:
- Soft start and soft stop;

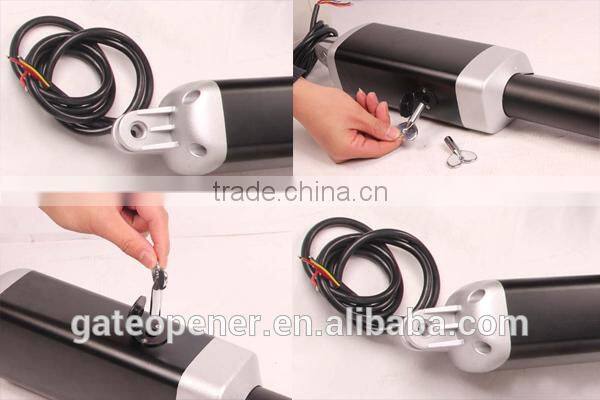

- Emergency release key in case of power failure;
- Dual/single gate running mode;
- Adjustable opening/closing inteval between master and slave gate;
- Stop/Reverse in case of obstruction during gate opening/closing;
- Built in adjustable auto-close
- Digital display indicates the running situation and setting menu;
- Reliable electromagnetism limit for easy adjustment;
- Bulit in max Motor running time(MRT) adjustable for multiple safety protection.

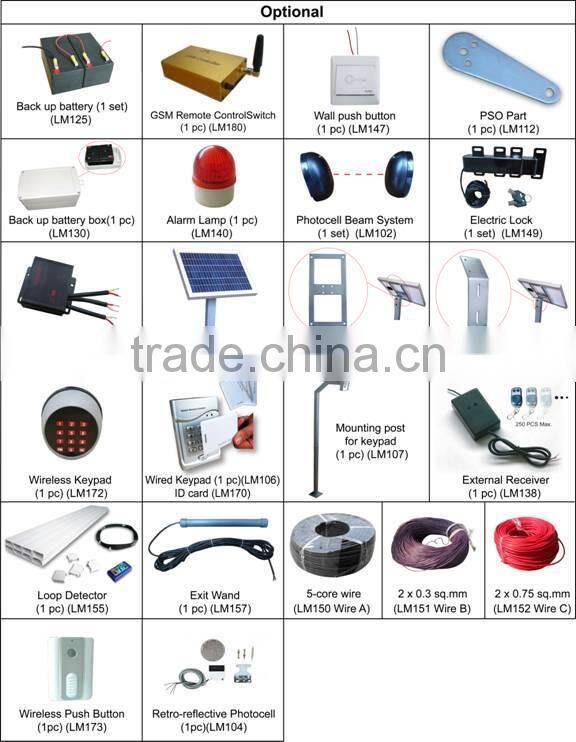

ACC KIT

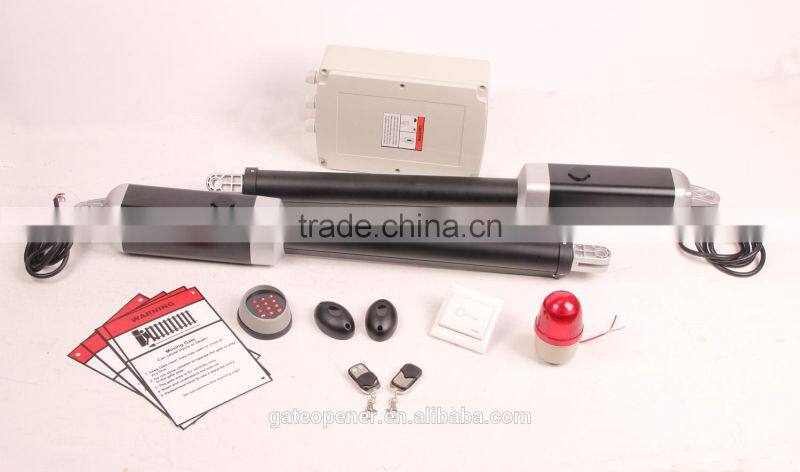

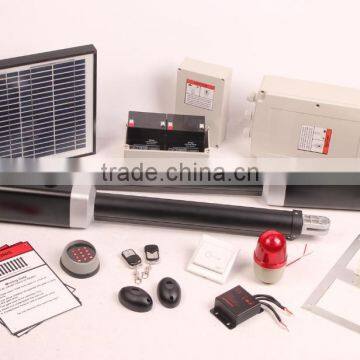

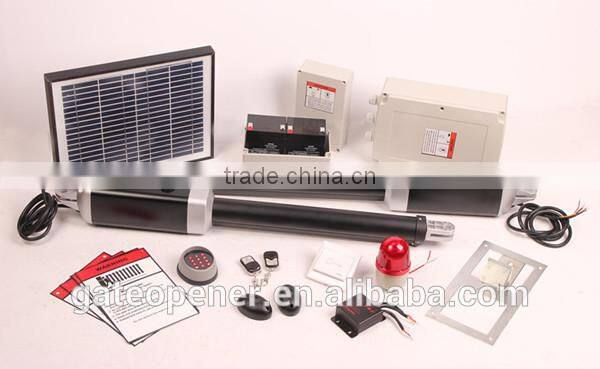

FULL KIT
As a leading manufacturer in the gate automation industry in China, SANFORD is proud to be setting the high standard in designing and producing the garage door opener, swing gate opener, sliding gate opener, and accessories. Our product line also includings rolling door opener, road barrier, and access control device and homeland security products.

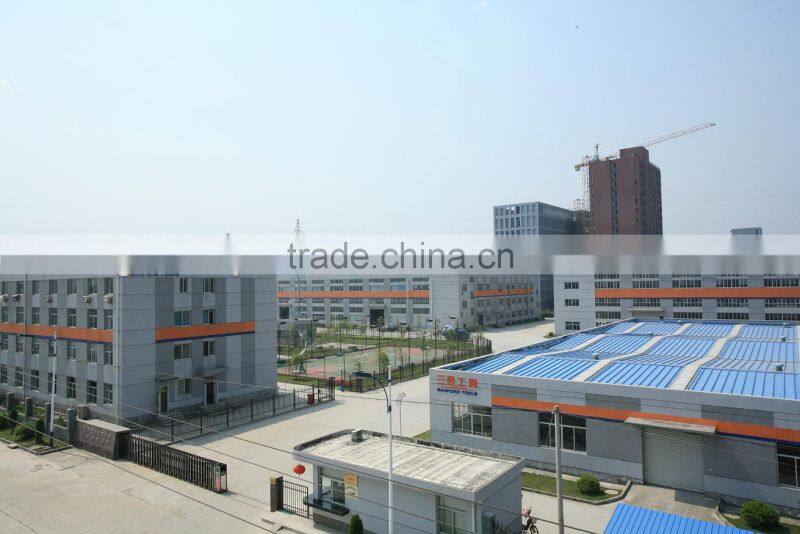

Located in west of Hangzhou city, SANFORD operates in four builkings including engineering, sales, workshop and warehousing, less than 180km from Shanghai seaport, one of the biggest seaport in China.
SANFORD, with our professional staff, can assist you with your project design, installation, and technical support when you need at any time. It is our pleasure to welcome you to our website. We hope it always brings you surprise and enrich your products line.
With years of manufacture and promotion experience in global market, SANFORD brings you profit and great success!
Sanford Tools Co.,Ltd
Phone: 86-571-88681169 ,89080166,
Fax: 86-571-88687885
What's app:+86-18969000522
Skype: song.aimee2
Website: ;
Address: 8 Sheng Di Road, Yuhang Town, Hangzhou 311121, China
Your any further query would be much appreciated, please do not hesitate to contact us.
