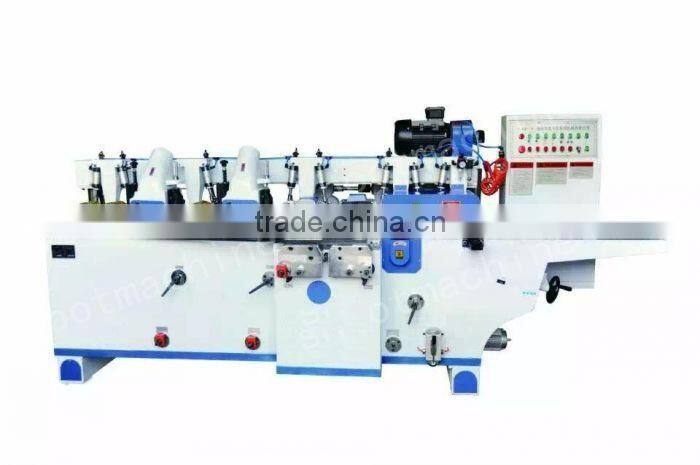

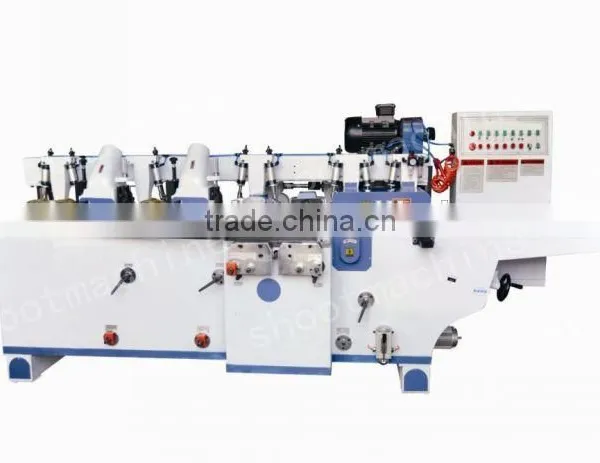

Four-sides Woodworking Thicknesser MB-5013H with Processing width 15--130mm and Processing thickness 8--110mm
Negotiable
/ Piece
5 Pieces(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Heavy-duty double-sides thicknesser SHMB302 with Max. planning width 310mm and Max. planning thickness 180mm
-
Woodworking Multiple Blade Rip Saw Machine with Working Width 250mm SHMJ250 with Maximum working width 250mm
-
Door Multi-Function Machine Center With CNC Control and 3 Hinges SHK4202D-3 with Woking length 1800mm~2400mm
-
AUTO SIX ROWS MULTI-BORING MACHINE BJK130AZS with Max. processing pitch 2450x672mm and Min. processing pitch 140x32mm
-
Horizontal & vertical sander SH436 with Motor 370W and Belt size 100x914mm
-
6" BELT & 10" DISC SANDER SH2515 with Motor 750W and Belt size 152x1219mm
Product Details
| Condition | New | Type | Four Side Moulder | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | MB-5013H | Power(W) | 18.77kw | |
| Certification | CE |
Product Description
| Four-sides Woodworking Thicknesser | |
| Feature | |
| The body is with heavy-duty steel and with special heat treatment process, better stability. | |
| Stable high speed feeding system, 20 m / min. and with speed adjustment 5-20m, greaty improves the production efficiency. | |
| All the spindle are with seperater motors, makes the cutting strong. | |
| The work table is with special treatment process, better durability and no deformation. | |
| Feeding wheel, using cylinder compression type, can be individually adjusted to its pressure, which makes feeding more smoothly. | |
| High speed spindle equipped with SKF high-speed bearings, more smooth cutting. | |
| Spindle adjustment is concentrated in the front of the machine, more humane strcture. | |
| The work table is with active feeders, feeding more smoothly. | |
| All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation. | |
| The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator. | |
| Model | MB-5013H |
| Processing width | 15--130mm |
| Processing thickness | 8--110mm |
| Feeding speed | 5--20m/min |
| Feeding power | 2.2kw |
| Knife speed | 6800r/min |
| First bottom power | 2.2kw |
| Left cutter power | 3kw |
| Right cutter power | 3kw |
| Rirst top power | 4kw |
| Second top power | 4kw |
| Beam lifting power | 0.37kw |
| Total power consumption | 18.77kw |
| Max. cutting round | Φ170mm |
