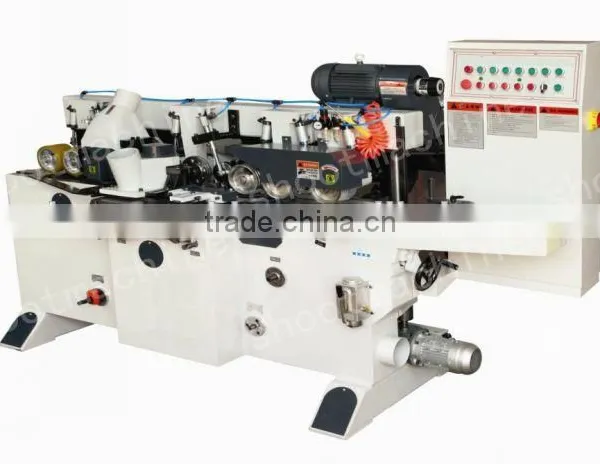

Double Pillar Up And Down High Sheed Four Side Thicknesser with double column MB-4020Z with Processing width 15-200mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 150 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Double Pillar Up And Down High Sheed Four Side Thicknesser with double column MB-4016Z with Processing width 15-170mm
-
Double Pillar Up And Down High Sheed Four Side Thicknesser with double column MB-4013Z with Processing width 15-130mm
-
Four-sides Woodworking Thicknesser MB-5013H with Processing width 15--130mm and Processing thickness 8--110mm
-
Heavy-duty double-sides thicknesser SHMB302 with Max. planning width 310mm and Max. planning thickness 180mm
-
Woodworking Multiple Blade Rip Saw Machine with Working Width 250mm SHMJ250 with Maximum working width 250mm
-
Door Multi-Function Machine Center With CNC Control and 3 Hinges SHK4202D-3 with Woking length 1800mm~2400mm
Product Details
| Condition | New | Type | Four Side Moulder | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | MB-4020Z | Power(W) | 23.75kw | |
| Dimension(L*W*H) | 2530x1290x1580mm | Certification | CE |
Product Description
| Double Pillar Up And Down High Sheed Four Side Thicknesser with double column | |
| Feature | |
| The body is with heavy-duty steel and with special heat treatrment process, belter stability. | |
| Stable high speed feeding system, 33m/min, and with speed adjustment 8-33mm, greatly improve production efpciency. | |
| All the spindle are with seperater motors, makes the cutting strong. | |
| The work table is with special treatment process, better durability and no deformation. | |
| Feeding wheel, using cylinder compression type, can be individuslly adjusted to its pressure, which makes feeding more smoothly. | |
| High speed spindle equipped with SKF high-speed bearings, more smooth cutting. | |
| Spindle adjustment is concentrated in the front of the machine, more hurnane strcture. | |
| The work table is with active feeders, feeding more smoothly. | |
| All the parts are made with pne processing of high-precision CNC Center, and this ensures stable and efpcient operation. | |
| The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator. | |
| Double pillar up and down, more stable | |
| Model | MB-4020Z |
| Processing width | 15-200mm |
| Processing thickness | 10-110mm |
| Feeding speed | 8-33mm |
| Feeding motor power | 5.5kw |
| Upper and down knife speed | 6800r/min |
| Upper and down knife diameter | 100mm |
| Upper and down knife motor power | 7.5kw/3kw |
| Right and left knife speed | 6800r/min |
| Right and left knife diameter | 100mm |
| Upper/left/right knife max cutting round | Φ160 |
| Down knife max cutting round | Φ125 |
| Right and left knife motor power | 4kw/3kw |
| Up and down speed | 222mm/min |
| Up and down motor power | 0.75kw |
| Total power | 23.75kw |
| Overall dimensions | 2530x1290x1580mm |
