Home > Products > Woodworking Machine > Double Side Planner & Up-Down Multiple Blade Rip Saw Series Machine with Working width 250mm SHMJ425SBJ with Max Thickness130mm

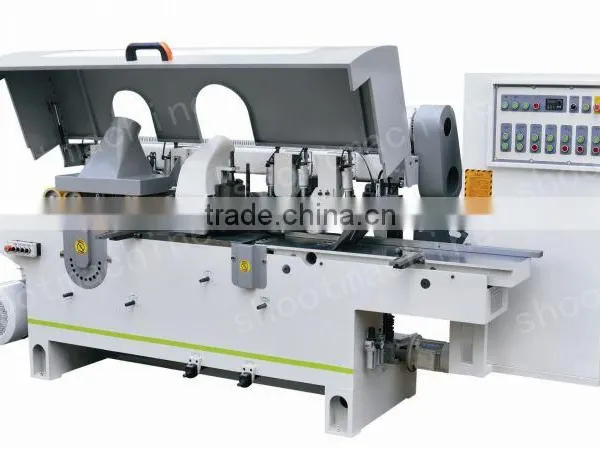

Double Side Planner & Up-Down Multiple Blade Rip Saw Series Machine with Working width 250mm SHMJ425SBJ with Max Thickness130mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 150 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Double Side Planner & Up-Down Multiple Blade Rip Saw Series Machine with Working width 300mm SHMJ430SBJ with Max Thickness130mm
-
Four Side Planning-sawing Machine SHML-616DBJ with Working width 20-160mm and Thickness 10-120mm
-
Four Side Planning-sawing Machine SHML-620DBJ with Working width 20-200mm and Thickness 10-120mm
-
Woodworking Multiple Blade Rip Saw Machine with Working Width 300mm SHMJ300 with Maximum working width 300mm
-
Vertical and Horizontal Combination of Profiled Sanding Machine with 1100mm Width and 5 Sand Rack BSGYX5S2411
-
Thin Wood Veneer Splicing Machine MH1114 with Throat depth 1300mm and Thickness of veneer 0.3-3mm
Product Details
| Condition | New | Type | Other | |
| Use | Woodworking | Style | Vertical | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SHMJ425SBJ | Voltage | 380V | |
| Power(W) | 56.82kw | Dimension(L*W*H) | 3500x1500x1600mm | |
| Certification | CE |
Product Description
| Double Side Planner & Up-Down Multiple Blade Rip Saw Series Machine with Working Width 250mm | |
| Feature | |
| Professional solution, large quantities of wood materials such as wood material specifications carriage, double-sided planer multi chip sawing machine. | |
| Saw shaft independent operation, frequency conversion transmission, according to the hardness of wood can choose reasonable conveying speed. | |
| Hard chromium plating on the working table, smooth and wear resistance. | |
| Up and down saw shaft independent electric lift, operation, quick, simple and convenient. | |
| Up and down saws are responsible for 50% machining, high efficiency, energy saving and material saving. | |
| Saw uranium setting water, jet cooling system, lifting the blade utilization. | |
| Model | SHMJ425SBJ |
| Maximum working width | 250mm |
| Max Thickness | 130mm |
| Feeding speed | 5-25m/min |
| Knife shaft diameter | 125mm |
| Knife shaft speed | 6000r/min |
| Arbor move around | 10mm |
| Knife shaft motor power | 7.5kw |
| Under the knife shaft motor power | 5.5kw |
| Conveyor motor power | 2.2kw |
| Saw shaft diameter | 50mm |
| Saw shaft keyway | 16x5mm |
| Saw shaft speed | 4000r/min |
| Saw the largest diameter | 250mm |
| The vertical axis motor power saw | 18.5kw/22kw |
| Lift shaft power saw | 0.37kw |
| Lift motor transport system | 0.75kw |
| Total motor power | 56.82kw |
| Dimensions | 3500x1500x1600mm |
