Four Side Planning-sawing Machine SHML-616DBJ With Working Width 20-160mm and Thickness 10-120mm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHOOT
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Four Side Planning-sawing Machine SHML-620DBJ With Working Width 20-200mm and Thickness 10-120mmNegotiableMOQ: 1 Piece -
Woodworking Multiple Blade Rip Saw Machine With Working Width 300mm SHMJ300 With Maximum Working Width 300mmNegotiableMOQ: 1 Piece
-
Vertical and Horizontal Combination of Profiled Sanding Machine With 1100mm Width and 5 Sand Rack BSGYX5S2411NegotiableMOQ: 1 Piece
-
Thin Wood Veneer Splicing Machine MH1114 With Throat Depth 1300mm and Thickness of Veneer 0.3-3mmNegotiableMOQ: 5 Pieces
-
CNC Multi-use Door Processing Machine With 4 Hinges SHK4202D-4 With Workpiece Length 1800-2400mm and Workpiece Width 600-1100mmNegotiableMOQ: 1 Piece
Condition
New
Place of Origin
Shandong, China
Brand Name
SHOOT
Model Number
SHML-616DBJ

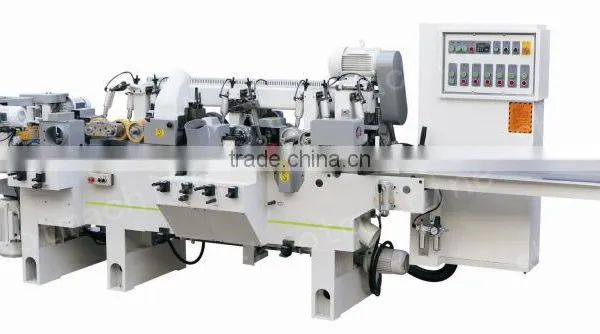

| Four Side Planning-sawing Machine | |
| Feature | |
| Professional solution, large quantities of wooden panels, sauna board, bed, sofa bottom seat board wood board material specifications. | |
| Four side planer saw machine structure is reasonable, the operation is simple and convenint. | |
| Saw shaft frequency independent operation, transportation, according to wood hardness choose reasonable transmission speed. | |
| Hard chromium plating on the working table, smooth and wear resistance. | |
| Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth. | |
| Saw blade adopts automatic jet cooling device with automatic jet, and the usage rate of saw blade is promoted. | |
| High efficiency, energy saving, material saving, one machine with multiple purposes. | |
| Model | SHML-616DBJ |
| Working width | 20-160mm |
| Thickness | 10-120mm |
| Min. working length(intermittent/continuous) | 650/480 |
| Saw shaft diameter | Φ40 |
| Saw shaft speed | 4500r/miin |
| Planer shaft diameter | Φ40 |
| Planer shaft speed | 6000r/min |
| Feeding speed | 5-28m/min |
| First under the knife | Φ125mm |
| Right and left vertical knife | Φ110-Φ180mm |
| The knife | Φ110-Φ180mm |
| Left and right blade diameter | Φ180-Φ250mm |
| Total motor power | 36.99kw |
| First under the knife | 4kw/5.5hp |
| Left and right vertical knife, the knife | 2x4kw/5.5hp |
| Left and right saw spindle motor | 2x7.5kw/11hp |
| Feeding motor | 3kw/4hp |
| Rear auxiliary feeding motor | 2x0.37kw/1hp |
| Beam lifting motor | 0.75kw/1hp |
| Air pressure | 0.3-0.6MPa |
| Suction inlet diameter | 2xΦ150+4xΦ120mm |
| Dimensions | 4000x1550x1720mm |
| Weight | 2600kg |
