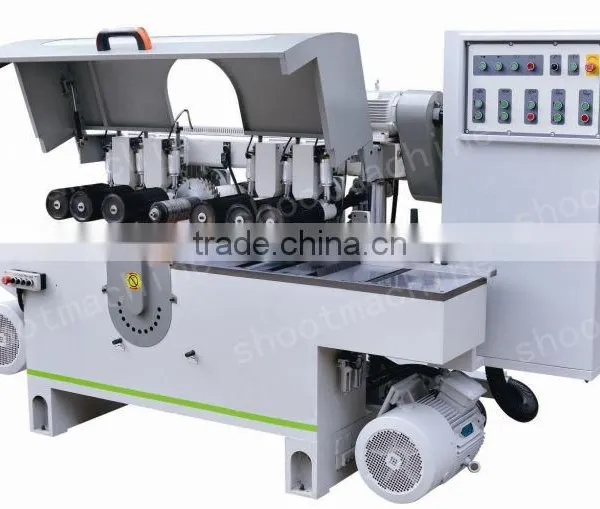

Up-Down Multiple Blade Rip Saw Series Machine With Working Width 300mm SHMJ230SXJ With Maximum Working Width 300mm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Use:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Planing-Sawing Machine With Working Width 200mm SHMJ320BJ With Maximum Working Width 200mm and Max. Thickness 80mmNegotiableMOQ: 1 Piece -
Planing-Sawing Machine With Working Width 250mm SHMJ325BJ With Maximum Working Width 250mm and Max. Thickness 80mmNegotiableMOQ: 1 Piece
-
Planing-Sawing Machine With Working Width 200mm SHMJ320ABJ With Maximum Working Width 200mm and Max. Thickness 80mmNegotiableMOQ: 1 Piece
-
Double Side Planner & Up-Down Multiple Blade Rip Saw Series Machine With Working Width 250mm SHMJ425SBJ With Max Thickness130mmNegotiableMOQ: 1 Piece
-
Double Side Planner & Up-Down Multiple Blade Rip Saw Series Machine With Working Width 300mm SHMJ430SBJ With Max Thickness130mmNegotiableMOQ: 1 Piece
Condition
New
Type
Other
Use
Woodworking
Style
Vertical
Place of Origin
Shandong, China
Brand Name
SHOOT
Model Number
SHMJ230SXJ
Voltage
380V
Power(W)
47.5kw
Dimension(L*W*H)
2800x1100x1600mm
Certification
CE
| Up-Down Multiple Blade Rip Saw Series Machine with Working Width 300mm | |
| Feature | |
| Professional solution, large quantities of wood, material specifications and other wood materials multi-chip SAWN | |
| Up and down saw shaft independent electric lift, operation, quick, simple and convenient. | |
| Six groups of the upper and lower feed rollers take the initiative to ensure that feed feeding smoothly. | |
| Up and down saws are responsible for 50% machining, high efficiency, energy saving and material saving. | |
| Saw uranium setting water, jet cooling system, lifting the blade utilization. | |
| Model | SHMJ230SXJ |
| Maximum working width | 300mm |
| Max Thickness | 180mm |
| Feeding speed | 5-18m/min |
| Saw blade diameter | 300mm |
| Saw shaft speed | 4000r/min |
| Knife shaft motor power | 22kw/30hp |
| Under the knife shaft motor power | 22kw/30hp |
| Air pressure | 0.5MPa |
| Saw shaft diameter | 50mm |
| Saw shaft keyway | 16x5mm |
| Transport lift motor power | 2.2kw/3hp |
| Conveyor motor power | 0.55kw/0.75hp |
| Total motor power | 47.5kw/64.75hp |
| Dimensions | 2800x1100x1600mm |
