Home > Products > Woodworking Machine > Laminating Product Line For PUR Glue SH1350PURM with Max.panel width 1220mm and Max.feeding speed 15m/min

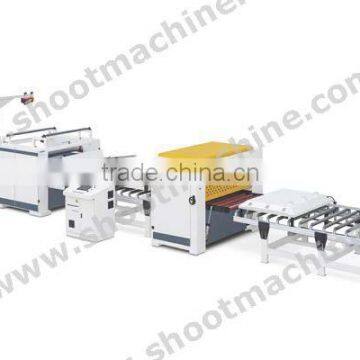

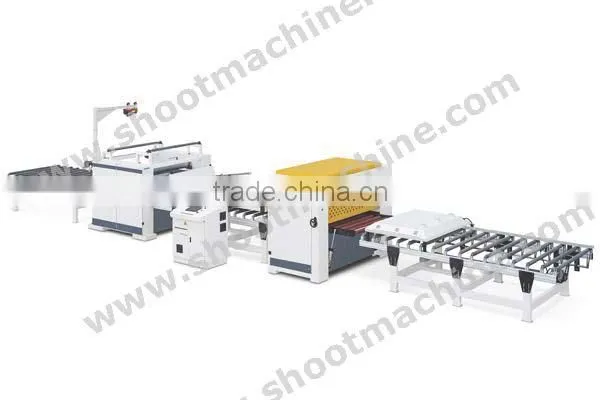

Laminating Product Line For PUR Glue SH1350PURM with Max.panel width 1220mm and Max.feeding speed 15m/min
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Auto Stacking Machine SH2512-II with Worktable size 2500x1200mmm and Min. panel thickness 3mm
-
Auto Feeding Machine SH2512-I with Worktable size 2500x1200mm and Min. panel thickness 3mm
-
CNC Boring Center Machine with Five Sides SHCNC-FSB2500 with Max. speed 80m/min and Main spindle power 3.5KW
-

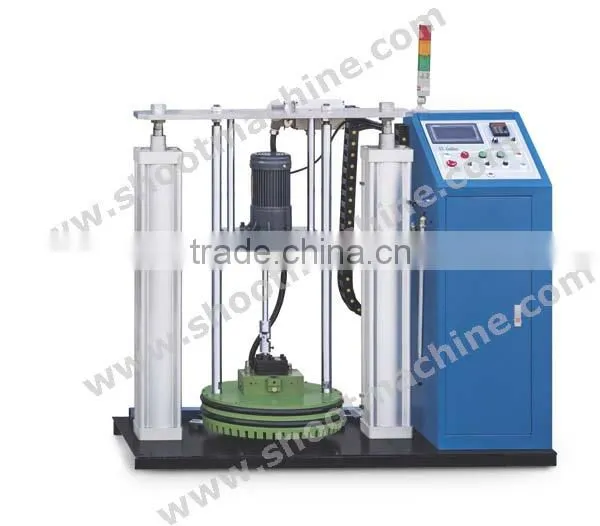

55 Gallons Humidity Reaction PUR Disk Hot Melt Glue Machine SH-PUR55 with Maximum motor rotating speed 125
-
CNC Auto Side Boring Machine with 1000x2500 Working Stroke SHCKJ1025 with Working Stroke 1000x2500x60mm
-
MDF Board Emboss Process Machine SH1300YWJ with Active motor power 2.2kw and Jacking motor 0.55kw
Product Details
| Condition | New | Product Type | Other, Sticker (PVC) Production Line | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SH1350PURM | Power(W) | 65KW | |
| Dimension(L*W*H) | 13000x2100x2550mm | Certification | CE |
Product Description
| Laminating Product Line For PUR Glue | |
| Feature | |
| This machine is used to laminate high glossy film,acrylic panel,PVC panel,PVC film, paper, PET film, on MDF,plywood,PVC panel and other panel. | |
| Characteristics | |
| It covers the functions of dust collection ,gluing,acrylic auto-feeding device and roll press. | |
| This machine is special for PUR glue. The glue supply machine is famous brand made in China.(55 gallon) | |
| This machine is control by PLC system and touch screen. So it’s very easy to operate. | |
| The heating of gluing machine is by oil,and there is a special control system to control the temperature. So it can keep the temperature very well,finally keep the best adhesive strength. | |
| When the panel arrive the roll press machine, the acrylic panel will be feeding in the same time,so it’s control very easy and operate very easy. | |
| The Gluing roll is made by special material,There is one stainless steel roll,one silicon roll and one ceramic roll. It’s the best material for PUR glue. | |
| Model | SH1350PURM |
| Max.panel width | 1220mm |
| Max.feeding speed | 15m/min |
| Total power | 65KW |
| Overall dimensions | 13000x2100x2550mm |
