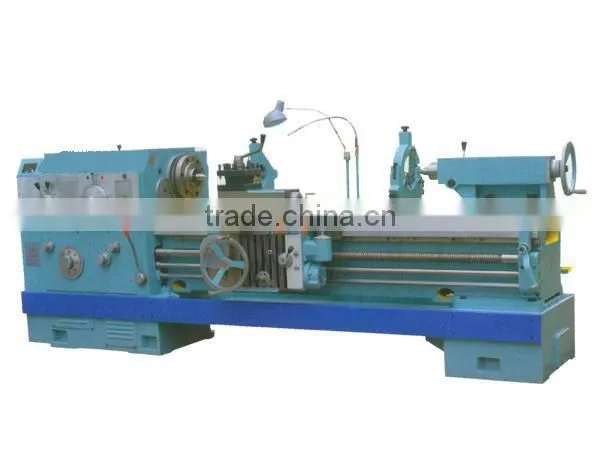

Parallel Conventional Lathe Machine With Spindle Bore 130mm SHCW-6294B(3000mm) With Max.Swing Over Bed 940mm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SHOOT
Model Number:
SHCW-6294B(3000mm)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Shearing Machine SH11D-3x1300 With Shearing Thickness 0.15-3mm and Max. Shearing Width 1300mmNegotiableMOQ: 20 Pieces -
Hydraulic Round Bending Machine HRBM65 With Dia. of Roller 65mm and Power 2.25kwNegotiableMOQ: 1 Piece
-
Round Bending Machine HRBM50HV With Dia. of Roller 50mm and Power 2.2kw/3HPNegotiableMOQ: 1 Piece
-
Table Vise SH-TV75 With Size 75mm and Net Weight 1kgsNegotiableMOQ: 50 Pieces
-
Hand Arbor Press SH-1T With Standards 1t and Pressure 10KNNegotiableMOQ: 50 Pieces
Place of Origin
Shandong, China
Brand Name
SHOOT
Model Number
SHCW-6294B(3000mm)
Condition
New
| Parallel Conventional Lathe Machine with Spindle bore 130mm | |
| These lathes are suitable mainly for turning internal and external cylindrical , Conical and other swing surface as well as various metric ,inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways.There are also following features: | |
| 1. The side wall of bed is constructed with double-rib Plates,and the shape of internal ribs is of box type and bevel ribs combination.The rigidity is higher than that fo ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting. | |
| 2.On apron, there is a device ,operated by a single lever, used for rapid traverse of the carriage . Spindle’s braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user’s choice. | |
| 3. The saddle guide way is glued by “TSF” soft belt wear resisting materials. | |
| 4. On user’s demand, we can equip the lathe with automatic feeding mechanism .The top slide can be used independently for turning of short cone. In combination with longitudinal feeding , it can also turn long taper surface. | |
| Model | SHCW-6294B(3000mm) |
| Swing over bed(mm) | 940 |
| Swing over carriage(mm) | 660 |
| Maximum length of workpiece(mm) | 3000 |
| Maximum turning length(mm) | 2850 |
| Swing over gap(mm) | 1140 |
| Effective width of gap(mm) | 300 |
| Pan of guideway(mm) | 550 |
| Spindle nose | C11 |
| Spindle bore(mm) | 130 |
| Taper hole of spindle | 1:20/120 |
| Range of spindle speeds(r/min) | 6-800 |
| Number of spindle speeds | 18 |
| Longitudinal and cross(r/min) | 64;0.1-24.32 |
| Cross-to-long longitudinal feed rate | 1.0/2.0 |
| Screw pitch of leadscrew(mm) | 12 |
| Number and range of metric thread(mm) | 50;1-240 |
| Number and range of inch thread | 26;14-1 |
| Number and range of module thread(mm) | 53;0.5-120 |
| Number and range of diametrical pitch thread | 24;28-1 |
| Rapid traverse speed of carriage(mm/min) | 4000 |
| Max.travel of cross slide(mm) | 570 |
| Max.travel of top slide(mm) | 200 |
| Section of tool shank(mm) | 32 |
| Diameter of tailstock quill(mm) | 100 |
| Travel of tailstock quill(mm) | 250 |
| Taper hole of tailstock quill | Morse 5 |
| Main motor power(kw) | 11 |
| Machine mass(kg) | 5400 |
| Length(mm) | 5225 |
| Width(mm) | 1430 |
| Height(mm) | 1690 |
| Standard Accessories | |
| 1) 3 Jaw Chuck(Dia.325mm) | 7) Operation Manual |
| 2) 4-Jaw Chuck(Dia.500mm) | 8) Face Plate |
| 3) Center, Center Sleeve | 9) Brake Disc |
| 4) Steady Rest, Follow Rest | 10) Worm wheel |
| 5) Driving Plate | 11) Gear wheel |
| 6) Oil gun | 12) Nuts |
| Optional Accessories | |
| 1) Taper Ruler | |
| 2) Qik-Changing Toolpost | |
| 3) Thread Dial |
