Universal Bending Machine SH-UBM with Product Specification 225x90x64mm
Negotiable
/ Piece
20 Pieces(Min.Order)
- 100 Piece / Pieces per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
Laundary Dryer Machine SHLDM1500X1100 with Working System Two way Rotation and Main Motor Power 2.2kw
-
Laundary Machine SHLM1200X850 with Extract speed 300--700r/min and Resistance 27kw
-
Single pole,wind cold,micro oil,Permanent magnetic variable frequency screw air compressor SH-400W
-
Metal Band Saw Machine SH01-BS-100 with Blade size 13 x 0.65 x 1470mm(0.5"X0.025"X58")
-
Roll & ball stand SH-BR1/B5-01 with Roller diameter 50mm and Steel housing length 410mm
-
Circular Saw Machine SH01-CS-225 with Max. blade size 225mm and Vice opening 70mm
Product Details
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SH-UBM | Condition | New |
Product Description
| Universal Bending Machine | |
| Model | SH-UBM |
| Product Specification | 225x90x64mm |
| Maximum Bending Degree | 8 circular material, 30x2 (width x thickness) sheet |
| N.W./G.W. | 3.7/5kgs |
| Steps | |
| Bending machine must be fixed on the jaw vice or T slot of machine tool stably. | |

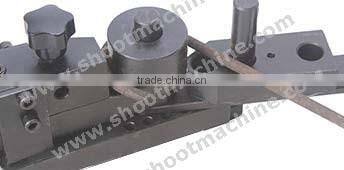

| Using two 13mm shafts, keeping the bending workpiece between block and fixed axis, then rotate the handle a quarter circle, a 90° circle arc lasts. | |

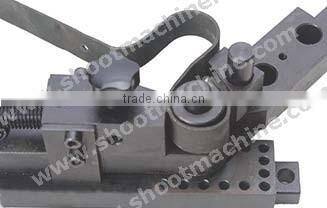

| Choosing corresponding specifications of the circle, keeping the workpiece between activity block and circle, loosen the handle after rotating the handle to the right angle, moving the workpiece clamping point then to rotate handle step by step, until the ring form as shown in figure. | |
| According to the size of the workpiece to select the size of the circle, the circle material can be half a circle, circle, arc curved shapes such as bending. | |

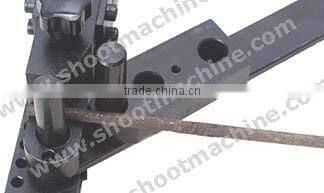

| Choosing a appropriate circle and angle module, catching a sheet end between them, loosen the handle after rotating the handle to the right Angle, move the workpiece clamping point to rotating handle, step by step, until the ring form as shown in figure. We can transform clamping points, bend the workpiece of any shape. | |
| When you need to bend more than two of the same length, you can use the set rule to locate the workpiece length. Inserting the set rule into the set hole in universal bending machine, while adjusting to a appropriate length, tightening the small knob is ok. | |

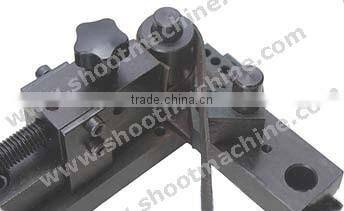

| Using a appropriate angle module, adjusting the set rule to the appropriate size, clamping workpiece as shown, which can bent square workpiece, increase work efficiency and the accuracy of the workpiece. | |
| Packing List | |
| 1. Name | Numbers |
| 2. Main engine | 1 |
| 3. Handle | 1 |
| 4. 5mm shaft | 1 |
| 5. 6mm shaft | 1 |
| 6. 13mm long shaft | 1 |
| 7. 25mm circle | 1 |
| 8. 30mm circle | 1 |
| 9. 35mm circle | 1 |
| 10. 40mm circle | 1 |
| 11. Long angle mode | 1 |
| 12. Short angle mode | 1 |
| 13. Set rule | 1 |
| 14. Instruction book | 1 |

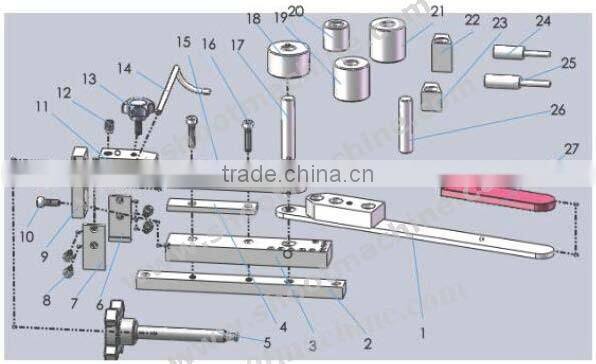

| Universal Bending Machine Chart |
| Spare Parts List | |
| Name | Numbers |
| 1. handle | 1 |
| 2. floor | 1 |
| 3. work board | 1 |
| 4. small plate | 1 |
| 5. screw | 1 |
| 6. right-side plate | 1 |
| 7. left-side plate | 1 |
| 8. M5x10 socket head bolts | 4 |
| 9. connection plate | 1 |
| 10. M6x16 socket head bolts | 2 |
| 11. activity block | 1 |
| 12. M8x12 locating bolt | 1 |
| 13. M6x16 knob | 1 |
| 14. set rule | 1 |
| 15. slide rail | 1 |
| 16. M6x25 socket head bolts | 2 |
| 17. 13mm long shaft | 1 |
| 18. 40mm circle | 1 |
| 19. 30mm circle | 1 |
| 20. 25mm circle | 1 |
| 21. 35mm circle | 1 |
| 22. long angle mode | 1 |
| 23. short angle mode | 1 |
| 24. 5mm shaft | 1 |
| 25. 6mm shaft | 1 |
| 26. 13mm short shaft | 1 |
| 27. rubber in handle | 1 |
