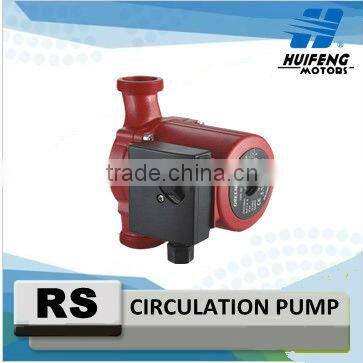

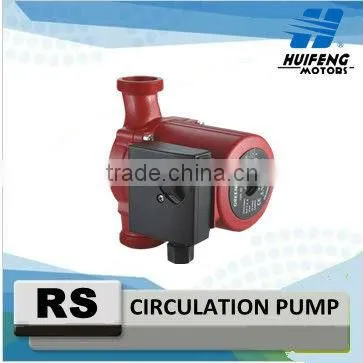

Hot Water Circulation Pump

Specifications

Hot Water Circulation Pump

Technical data:
1) Suitable fluids: heating water to VD12035.
2) Heating water:
3) Water/glycol mixtures max. mixing ratio: 1:1.
Performance:
1) Fluid temperature range: -10°C-110 °C.

2) Max. working pressure: 10 bars.
3) Ambient temperature: permissible up to 40 °C.
Power:

1) Main power: 1 - 230V, 50Hz /60Hz.
Motor:

1) Degree of protection: lp44
2) Insulation class: F
Construction materials:
1) Pump body: cast iron.
2) Impeller: PPO, stainless steel on request.
3) Shaft: porcelain
4) Bearings: graphite or ceramic.
Mounting positions:
1) Pump shaft in the horizontal plane, terminal box.
2) Optional 3, 6, 9 or 12 o'clock.
Pump equipment:
1) Screwed end single head pump
2) Manual 3-speed control
3) Non-overloading single phase motor
4) Cast iron body, 130mm/180mm port-to-port
