SCM Centrifugal Water Pump

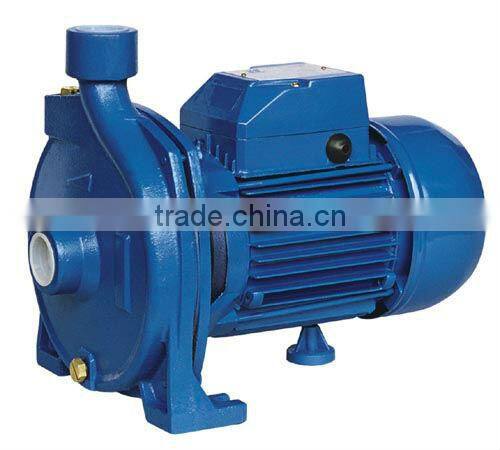

SCM Centrifugal Water Pump photo-1
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Huifeng
Model Number:
IDB
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Huifeng
Model Number IDB
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure Other

Specifications

SCM Centrifugal Water Pump
SCM22/28/32/42/50
Pump casing:Cast Iron
Impeller:ABS/Brass/Noryl
Diffuser:Noryl/PPO

SCM Centrifugal Water Pump



SCM22/28/32/42/50



1. Working conditions:

Max temperature of fluid up to:     50

Max ambient temperature up to:        40

Max Pressure:                        8bar

2. Structural characteristics:

Pump casing:       Cast Iron

Impeller:           ABS/Brass/Noryl

Diffuser:           Noryl/PPO/ABS/Cast iron

Motor Housing:     Aluminum

Pump-motor adaptor:Aluminum/Cast iron

Mechanical seal:    Stainless steel(graphite to ceramic)

Shaft:             45# steel or stainless steel

Bearing:           SKF/NTN/NSK/China

Insulation class:     B/F

Protection class:    IP44 and IP54

3.Technical data(220V,50HZ)110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.



Model Power Q.Max H.Max S.Max In/Outlet Packing Dim GW 20ft Speed
kw hp L/min m m mm mm kg pcs r.p.m
SCM-16 0.33 0.45 75 16 9 25x25 310x160x225 8.2 2300 2850
SCM-22 0.37 0.5 90 22 9 25x25 310x165x225 9.3 2300 2850
SCM-42 0.55 0.75 100 28 9 25x25 310x165x225 10.5 2300 2850
SCM-50 0.75 1 120 35 9 25x25 330x230x280 14.5 1400 2850

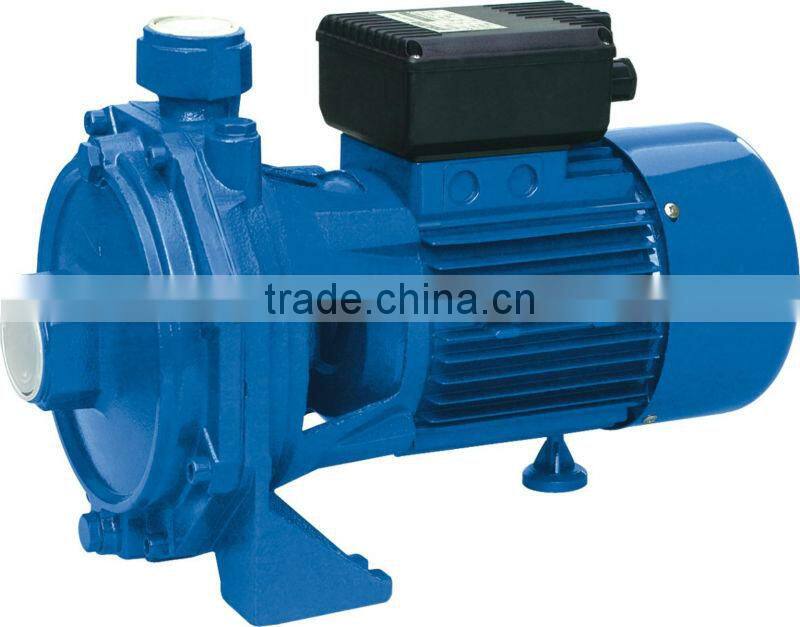

SCM Centrifugal Water PumpSCM Centrifugal Water Pump

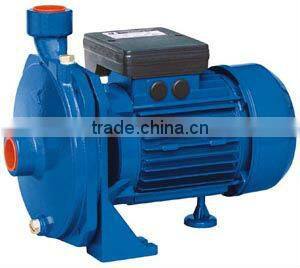

SCM Centrifugal Water Pump

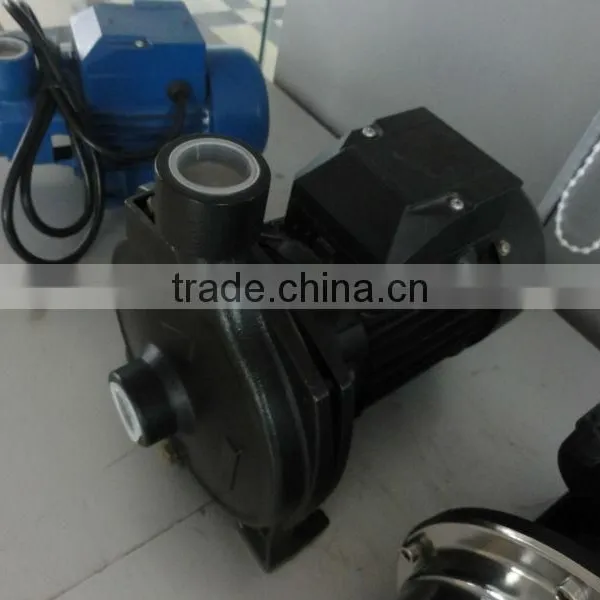

 SCM Centrifugal Water PumpSCM Centrifugal Water PumpSCM Centrifugal Water Pump
