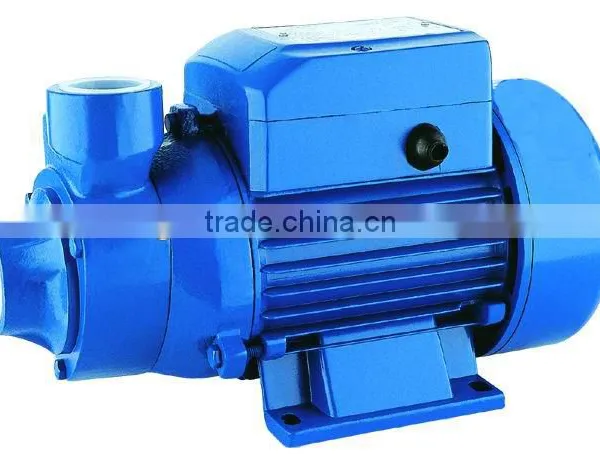

QB60 Water Pump

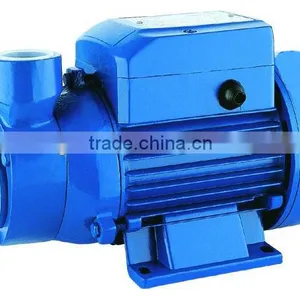

QB60 Water Pump thumbnail-1
QB60 Water Pump photo-1
US$ 15.5 - 46.8 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Huifeng
Model Number:
QB
Contact Supplier Request Quote Chat Now
Huifeng Motors Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Huifeng
Model Number QB
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure Other

Specifications

QB60 Water Pump
QB60/70/80
Pump casing:Cast Iron
Impeller:ABS/Brass/Noryl
Diffuser:Noryl/PPO/ABS/Cast iron

QB60 Water Pump



1. Working conditions:

Max temperature of fluid up to:     80°C

Max ambient temperature up to:       40°C

Max Pressure:                       10bar

2. Structural characteristics:

Pump casing:         Cast iron

Impeller:             Brass

Motor housing:       Aluminum

Mechanical seal:       Stainless steel(graphite to ceramic)

Shaft:               45# steel or stainless steel

Bearing:             SKF/NTN/NSK/China

Insulation class:       B and F

Protection class:       IP44 and IP54

3.Technical data(220V,50HZ)



Model



Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

QB-60

370

0.50

35

35



9



2850

1″* 1″

5.3

265*120*152

QB-70

550

0.75

43

50

1″* 1″

8.5

310*138*172

QB-80

750

1

55

55

1.5″* 1.5″

10

315*138*180

110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.Models are acceptable if request.
