CPM Water Pump

CPM Water Pump thumbnail-1
CPM Water Pump photo-1
US$ 25 - 60 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Huifeng
Model Number:
CPM
Contact Supplier Request Quote Chat Now
Huifeng Motors Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Huifeng
Model Number CPM
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure Other
Application Submersible

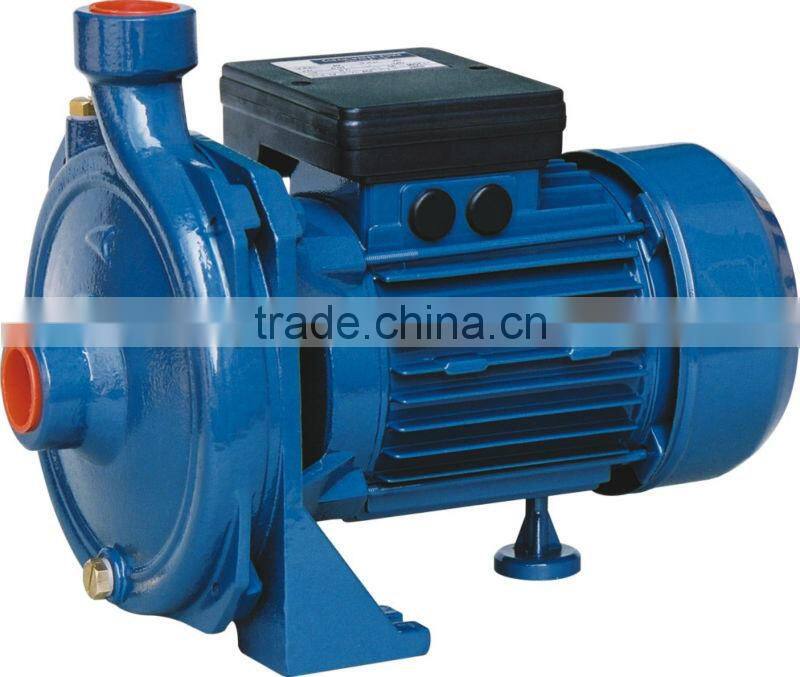

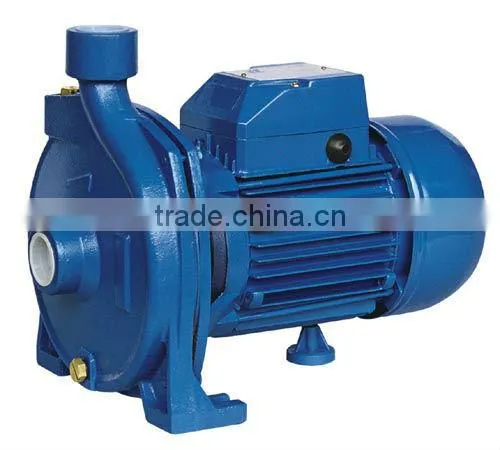

CPM Water Pump



1. Working conditions:

Max temperature of fluid up to:     80°C

Max ambient temperature up to:       40°C

Max Pressure:                       10bar

2. Structural characteristics:

Pump casing:           Cast iron

Impeller:               Brass

Motor housing:         Aluminum

Mechanical seal:       Stainless steel(graphite to ceramic)

Shaft:                45# steel or stainless iron

Bearing:               SKF/NTN/NSK/China

Insulation class:       B and F

Protection class:       IP44 and IP54

3.Technical data(220V,50HZ)

Model

Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

CPM-130

400

0.54

100

20

9



9

2850



2850

1” * 1”



1” * 1”



8.8

265*165*215

CPM-146

550

0.75

100

26

12.2

300*175*230

CPM-158

750

1

108

32

13.6

310*190*245

CPM-180

1100

1.5

120

40

20.2

361*230*292

CPM-200

1500

2

130

46

23

361*230*292

110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.Models are acceptable if request.
