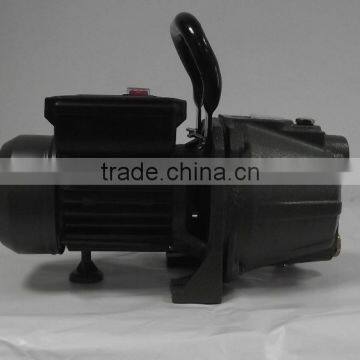

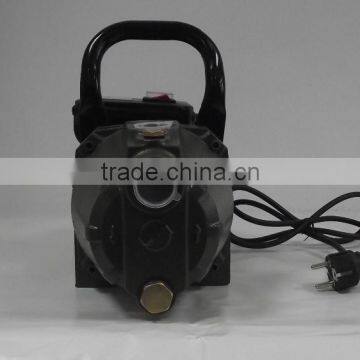

JET40 Water Pump

JET40 Water Pump

1 .Working conditions:

Max temperature of fluid up to:     50°C

Max ambient temperature up to:       40°C

Max Pressure:                       8bar

2. Structural characteristics:

Pump casing:       Cast Iron

Impeller:           ABS/Brass/Noryl

Diffuser:           Noryl/PPO/ABS/Cast iron

Motor Housing:       Aluminum

Pump-motor adaptor: Aluminum/Cast iron

Mechanical seal:     Stainless steel(graphite to ceramic)

Shaft:               45# steel or stainless steel

Bearing:             SKF/NTN/NSK/China

Insulation class:       B and F

Protection class:       IP44 and IP54

3. Technical data (220V,50HZ)

110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.Models are acceptable if request.
