JET-100L 1.0HP Jet Pump

JET-100L 1.0HP Jet Pump thumbnail-1
JET-100L 1.0HP Jet Pump photo-1
US$ 39 - 40.53 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
HUIHENG
Model Number:
JET-S
Contact Supplier Request Quote Chat Now
Huifeng Motors Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name HUIHENG
Model Number JET-S
Theory Jet Pump
Structure Other, Jet Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electricity
Pressure Low Pressure
Application Other, Clean water
Product Description



Pump casing:  Cast Iron

Impeller:  ABS/Brass/Noryl

Diffuser:   Noryl/PPO/ABS/Cast iron

Motor Housing:  Aluminum

Pump-motor adaptor:  Aluminum/Cast iron

Mechanical seal:  Stainless steel(graphite to ceramic)

Shaft:   45# steel or stainless steel

Bearing:  SKF/NTN/NSK/Chinese

Insulation class:  B or F

Thermal Protector Included.





Working conditions:

Protection class:   IP44 and IP54



Max temperature of fluid up to:  50℃



Max ambient temperature up to: 40℃



Max Pressure: 8bar



INSTALLATION
INSTALLATION AND APPLICATIONS:
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to pump components.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.

Perfermance.
PERPORMANCE:
The wide range of pump in the JET-M series satisfied the most varied requirements with features such as:
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters

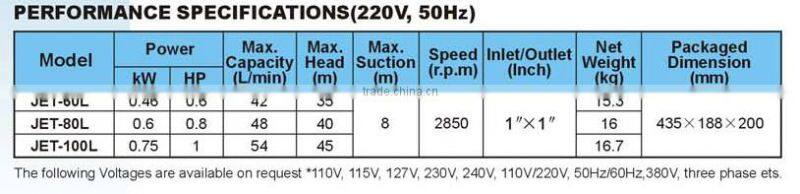

ModelPowerQ.MAXH.MAXS.HeadSpeedPipe DiaN.WPacking size
WHP(L/min)(m)(m)(r.p.m)(Inch)(kg)(mm)
JET-60L4600.65535928501"x1"15.3435*188*200
JET-80L6000.860401"x1"16435*188*200
JET-100L750160451"*1"16.7435*188*200
