Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > JSP-355A 1HP Jet Pump

JSP-355A 1HP Jet Pump

Name: JSP-355A 1HP Jet Pump
Brand: HUIHENG
SKU: 143320278
Availability: InStock

US$ 41.8 - 43 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

HUIHENG

Model Number:

JSP-355A

Contact Supplier Request Quote Chat Now

Huifeng Motors Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name HUIHENG

Model Number JSP-355A

Theory Jet Pump

Structure Other, Jet Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electricity

Pressure Low Pressure

Application Other, Clean water

Product Description

Pump casing: Cast Iron

Impeller: ABS/Brass/Noryl

Diffuser: Noryl/PPO/ABS/Cast iron

Motor Housing: Aluminum

Pump-motor adaptor: Aluminum/Cast iron

Mechanical seal: Stainless steel(graphite to ceramic)

Shaft: 45# steel or stainless steel

Bearing: SKF/NTN/NSK/Chinese

Insulation class: B or F

Working conditions:

Protection class: IP44 and IP54

Max temperature of fluid up to: 50℃

Max ambient temperature up to: 40℃

Max Pressure: 8bar

INSTALLATION

INSTALLATION AND APPLICATIONS:

These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to pump components.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.

Perfermance.

PERPORMANCE:

The wide range of pump in the JET-M series satisfied the most varied requirements with features such as:
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters

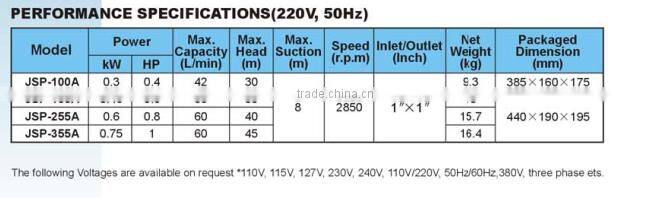

Model	Power		Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
	W	HP
JSP-100A	300	0.4	42	30	9	2850	1″ x 1″	9.3	385160175
JSP-155A	460	0.6	55	35				15	440190195
JSP-255A	600	0.6	60	40				15.7
JSP-355A	750	1	60	45				16.4
