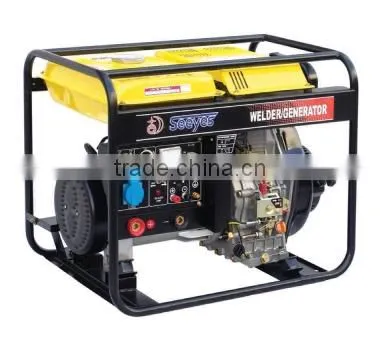

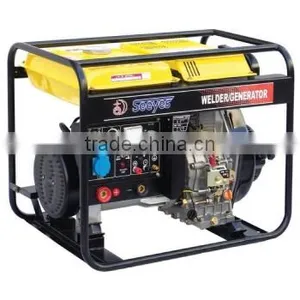

Diesel Generator/power Generator/generator

Specifications

Model:HDY180ALX
Diesel generator/power generator/generator
Type:Brushless,revolving magnetic field,self-excitating,2 poles,single-phase
Voltage Regulator:A.V.R.
Frequency:50/60HZ
Max.AC Output:2.8/3.0KVA
Rated AC Voltage:220.230.120/240V
Rated AC Output:2.5/2.8KVA
Power Factor:cosΦ=1

WELDER
Rated welding current(DC):160A
Rated welding voltage(DC):28V
Welding current adjustement scope:50-180A

ENGINE
Model:DH186FE
Type:Single-cylinder,Vertcal 4-stroke,Air-cooled diesel engline
Displacement:406ml
Max.Output:10.0HP/3600rpm
Fuel:Diesel Light FUEL
Fuel Tank Capacity:14.0L
Continuous Operating Hours:8.5/8.0h
Oil:Engline Oil SD or Highter
Oil capacity:1.65L
Ignition System:Direct injection
Starting System:Recoil+Electric start
Operating Noise Level:(7m): 84/85dB(A)


Net Dimension:720x480x580 mmxmmxmm
Overall Dimension:735x495x605 mmxmmxmm
N.W/G.W:108/112kg
20GP/40GP/40HQ:102/213/284
