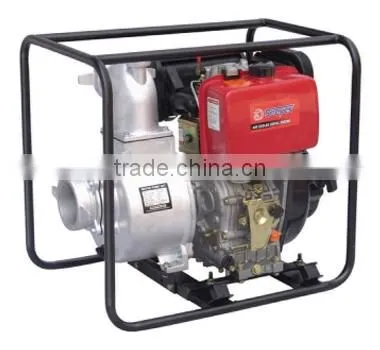

Diesel pump with port diameter 4"

Specifications

Diesel pump with port diameter 4"

Suction & Discharge port Dia.(mm) :100(4")
Max.Head(m): 31
Max.Suction(m): 8
Max.Flow(M³/h) :75
Self-priming Time(s/4m) :180
Engine Model: DH186F
Type:Forced air-cooled,4-stroke,Diesel Engine
Displacement(cc): 406
Max.Output(Hp/rpm): 10.0/3600
Fuel:Diesel Light Fuel
Fuel Tank capacity(L): 5.5
Oil: SAE 10W30(Above CC grade)
Oil capacity(L) :1.65
Ignition System:Direct Injection
Starting System:650x480x605
Net Dimension LXWXH(mm): 650x480x605
Overall Dimension LXWXH(mm) :665x495x625
N.W./G.W.(kg) :69/71
20GP/40GP/40HQ 112/240/320
