Home > Products > ZL36 wheel loader with CE > HUIZHONG Zl936 Hydraulic Truck Loader With CE, Cummins

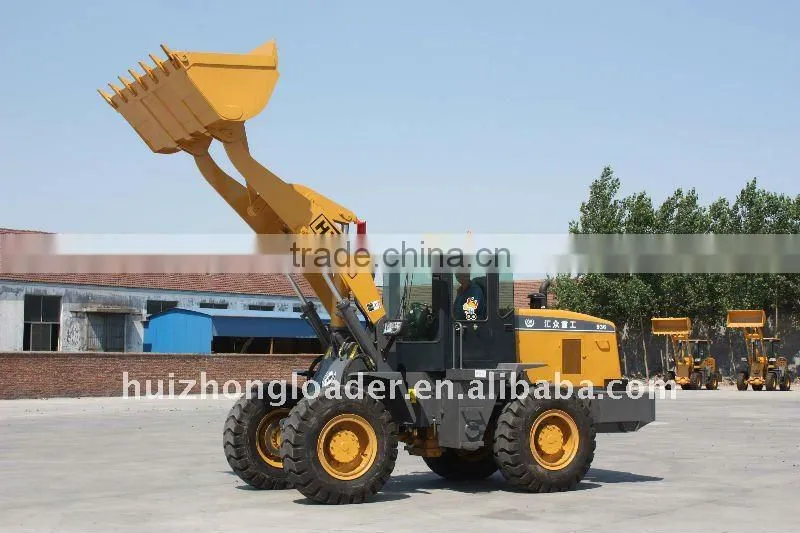

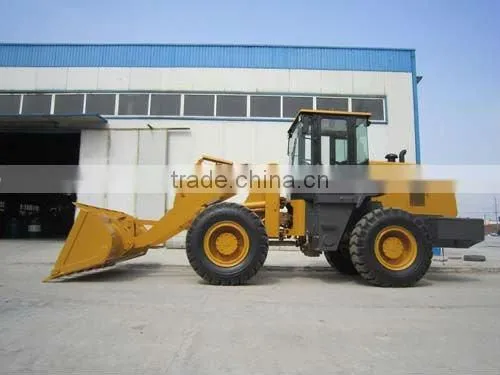

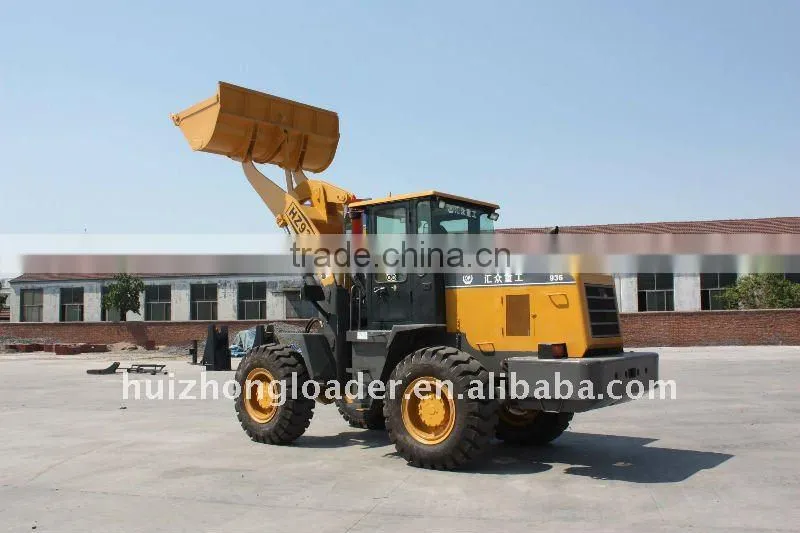

HUIZHONG Zl936 Hydraulic Truck Loader With CE, Cummins
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Brand Name | HUIZHONG | |
| Model Number | ZL936 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7050X2430X3120 | Rated Load | 3000kg | |
| Certification | CE | Warranty | 1year |
Product Description
Specifications
truck loader ZL936*CE truck loader with Deutz/cummins engine
*Hydraulic quick hitch(log fork) loader
*loader 3000kg
Specification | overall weight(kg) | 9500 |
L×W×H(mm) | 7050×2430X3120 | |
rated bucket capacity(m3) | 1.7 | |
Rated load(kg) | 3000 | |
Maximum dump height (mm) | 3020/3250 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 138 | |
Engine | Model | Deutz TD226B/Cummins 6BT5.9-C125 |
Type | In line,direct injection, four-stroke,liquid cooled | |
Rated power(kw) |
92kw | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ320B |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF25 |
Working pump | CBGj2100,CBGq2100 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 36.5±1° | |
Min turning radius(mm) | 5862 | |
Brake system | Brake type | air-break brake |
Tyres | Standard tyres | 17.5-25 |
|
|
