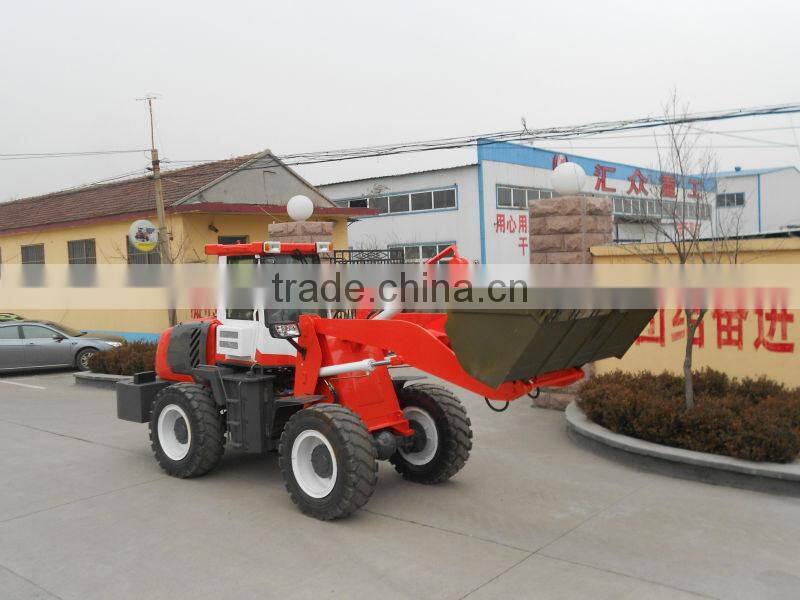

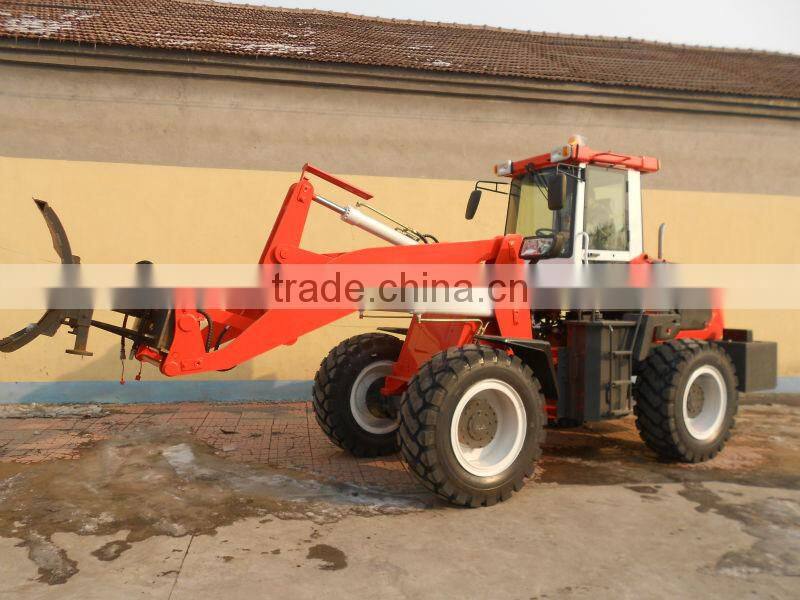

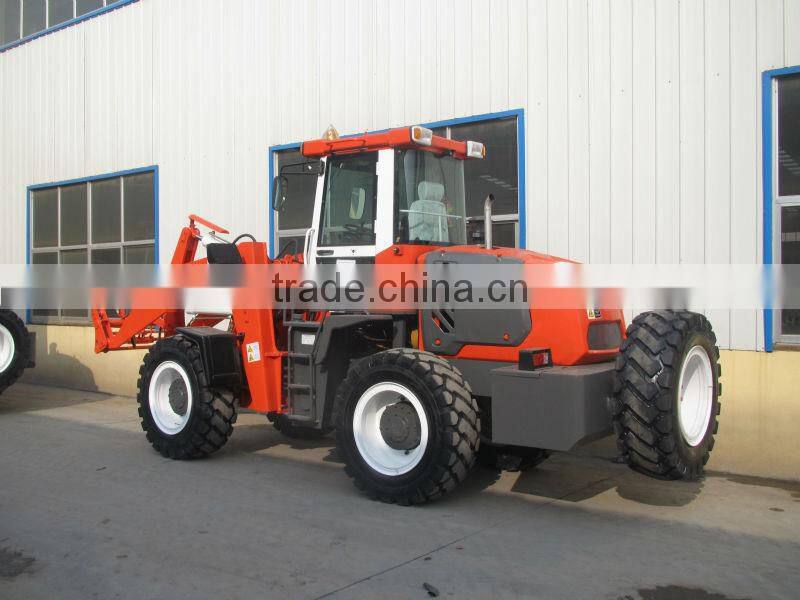

Construction equipment zl30 hot sale wheel loader with CE

Specification

overall weight(kg)

7000

L×W×H(mm)

7050×2430×3120

rated bucket capacity(m³)

1.5

Rated load(kg)

3000

Maximum dump height (mm)

3250/3500

Bucket indicator

Yes

Max. breakout force(KN)

138

Engine

Model

                             weichai 4108

Type

In line, direct injection, four-stroke, liquid cooled

Rated power(kw)

                             92kw(125hp)

Rated speed(r/min)

2400

Transmission system

Model of torque converter

YJ320B

Type

                    Single stage,3 elements

Gearbox type

Axial full power shift transmission

Gear shift

4 gears ahead,2 gear astern

Hydraulic system

Distribution of work valve

DF25

Working pump

CBGj2100,CBGq2100

Steering system

Type

Articulated hydraulic steering

Max. turning angle

lift and right 36.5±1°

Min turning radius(mm)

5862

Brake system

Brake type

Air-break brake

Tires

Standard tires

16/70-24
