Specifications
hot sale wheel loader1. Pallet fork and bucket
2. Capacity 1.5cbm
3. Quick release and coupling

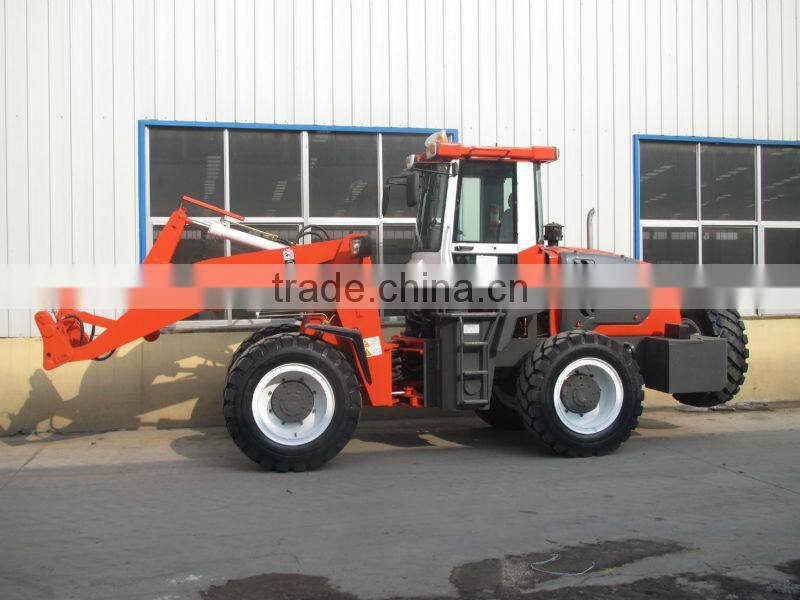

ZL30 WHEEL LOADER
|
Item |
Parameters |
Performance |
1 .Rated Load |
2800 kg |
2. Total Weight |
5800 kg |
|
3. Rated Bucket Capacity |
1.5 m3 |
|
4. Max. Tractive Force |
61 KN |
|
5. Max. Breakout Force |
≥ 72 KN |
|
|
6. Max. Grade ability
|
38° |
|
|
7. Max. Dumping Height
|
3200mm/3500 mm |
|
8. Max. Dumping Reach |
1300 mm |
|
9. Raising Time |
≤ 6.0 s |
|
10. Total Cycle Time |
≤ 11.5 s |
|
11. Overall Dimensions |
6900*2050*2950 mm |
|
12. Min. Turning Radius |
3800 mm |
|
|
Engine
|
13. ModeL |
Weichai HF4108/CUMMINS 4BT3.9-C100/ YUCHAI Turbocharged Engine |
14. Type |
Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
|
|
15. Rated Power |
60 Kw/75kw/85 kW |
|
16. Rated Speed |
2400 rpm |
|
|
17. Min. Fuel Consumption Ratio
|
≤ 210 g/kW·h |
|
Transmission System |
18. Hydraulic Torque Converter |
ZL280 Split Hydraulic Torque Converter |
19. Gear Shift |
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
20. Max. Speed |
25 km/h |
|
Drive Axle |
21. Model of Axle |
ZL20 Hub Reduction Axle (big) |
22. Wheel Tread |
1650 mm |
|
23. Wheel Base |
2600 mm |
|
Drive |
24. ModeL |
4-wheel Drive |
Hydraulic System |
25. System Working Pressure
|
20 MPa/21MPa |
26. Fuel Tank Capacity |
100 L |
|
Brake System |
27. Service Brake |
Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels |
28. Parking Brake |
Hand Flexible Shaft Controlled Disc Brake |
|
Tyre |
29. Type Specification |
16/70-24 |
30. Front Tyre Pressure |
0.40 Mpa |
|
31. Rear Tyre Pressure |
0.35 Mpa |
