Help CenterQingzhou HZM908 ZL08 0.8t 800kg Rated Load Wheel Loader
Related Products
-
HZM 0.8t Cheap Mini Loader HZM908 With ceNegotiableMOQ: 1 Set -
Weifang Mini Loader Zl08 With ZN385Q EngineUS$ 4,500 - 6,500MOQ: 1 Set
-
Mini Multifunction Mini Fork Loader Zl08 With CENegotiableMOQ: 1 Set
-
HZM Cheap Mini Loader Zl608 With ceNegotiableMOQ: 1 Set
-
HZM 0.8tmni Multifunctional Loader Zl08 With ceNegotiableMOQ: 1 Set
Qingzhou Huizhong Machinery Co.,Ltd -- / -- +86 15863252370

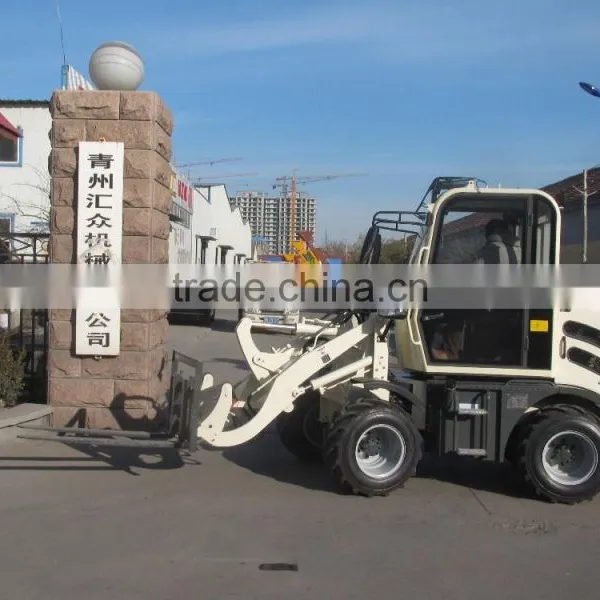

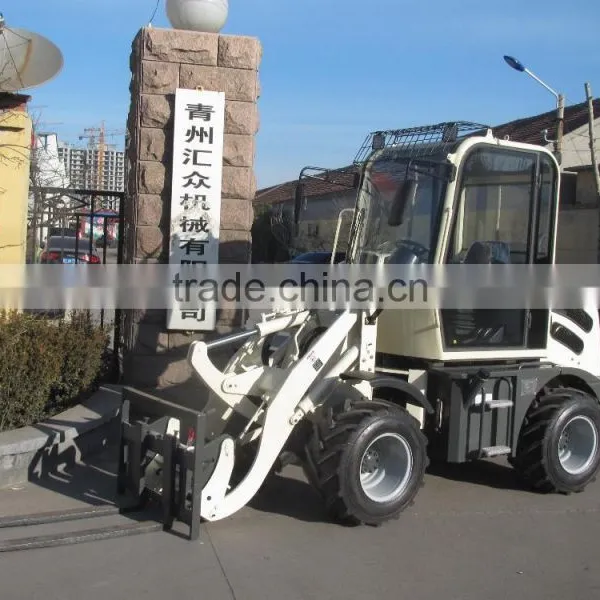

HZM908 wheel loader
Specification |
overall weight(kg) |
2000 |
L×W×H(mm) |
4200×1600×2550mm |
|
rated bucket capacity(m3) |
0.3-0.5 |
|
Rated load(kg) |
800-1000 |
|
dump height (mm) |
2350 |
|
Dump distance |
700mm |
|
Wheelbase |
2100mm |
|
Thread |
1400/1405mm |
|
Total time |
11s |
|
Engine |
Model |
Changchai 385 |
Type |
direct injection, horizontal, water-cooled, four stroke, single cylinder |
|
Rated power(kw) |
20/25KW |
|
Rated speed(r/min) |
2400 |
|
Working system |
Distribution of work valve |
DF15.2C |
Working pump |
CBF32 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
350±1 |
|
Min turning radius(mm) |
3400 |
|
Tyres |
Standard tyres |
10-16.5 vacuum tires |

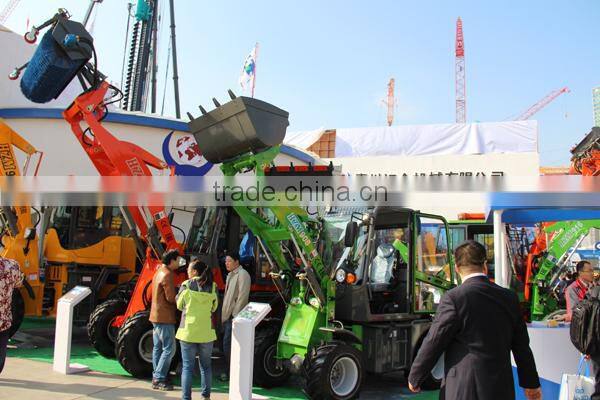

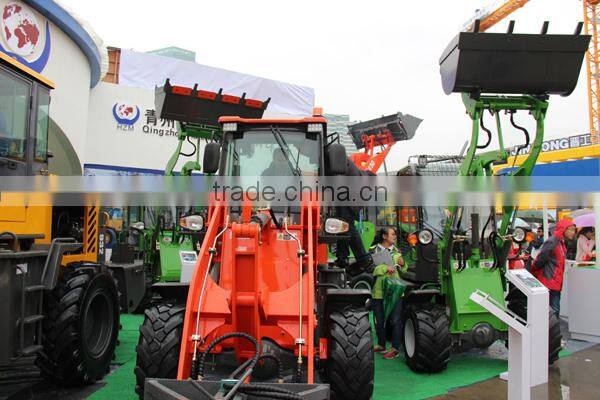

our wheel loader on Bauma fair , 2014 Bauma fair in Shanghai city
worker are making cleaning on HZM908 wheel loader

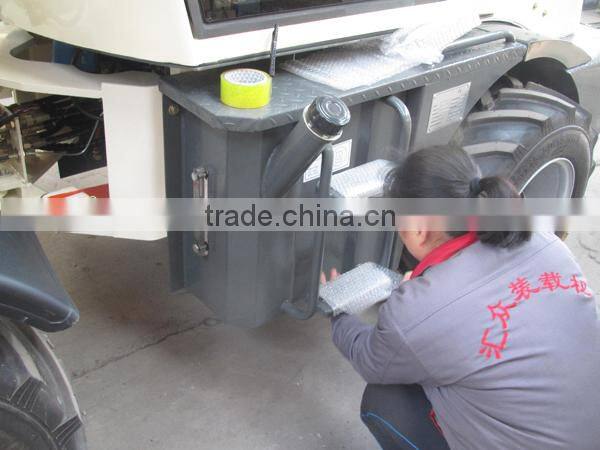

worker are making protection on oil tank

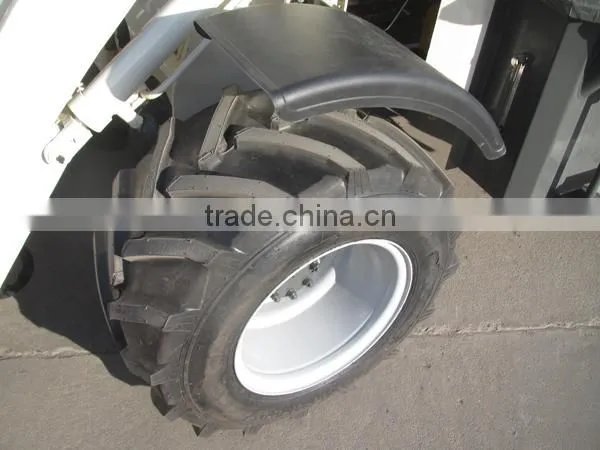

Snow tires for HZM908 wheel loader

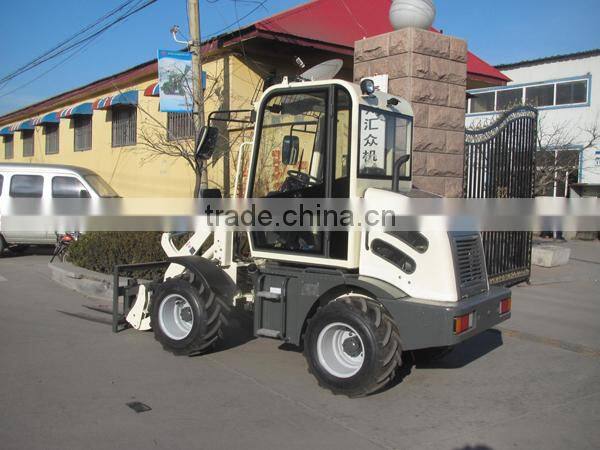

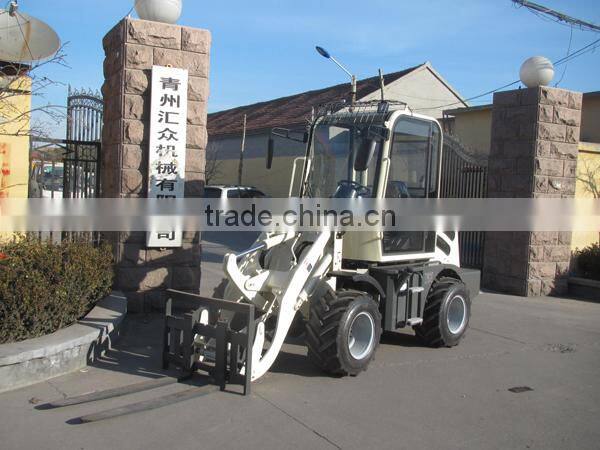

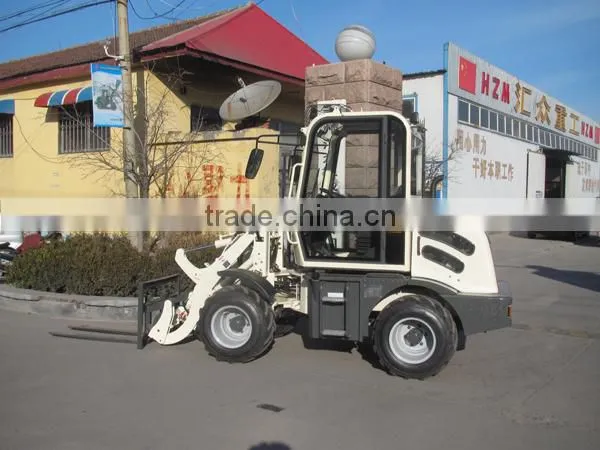

the whole appareance of Europe design on wheel loader

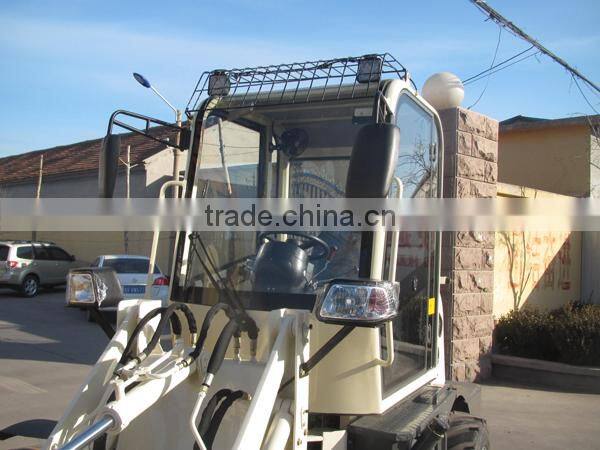

LED light for HZM908 wheel loader

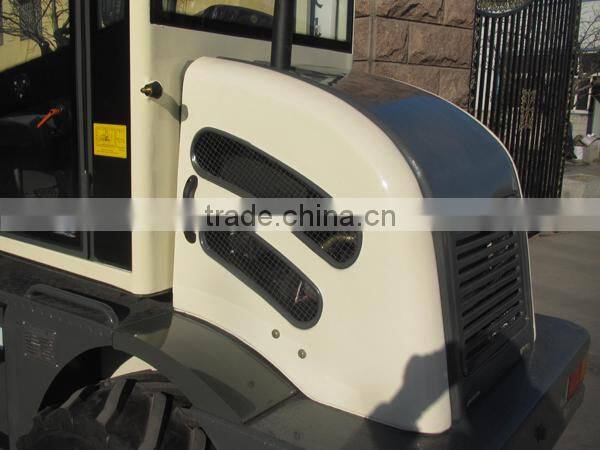

Europe engine cover

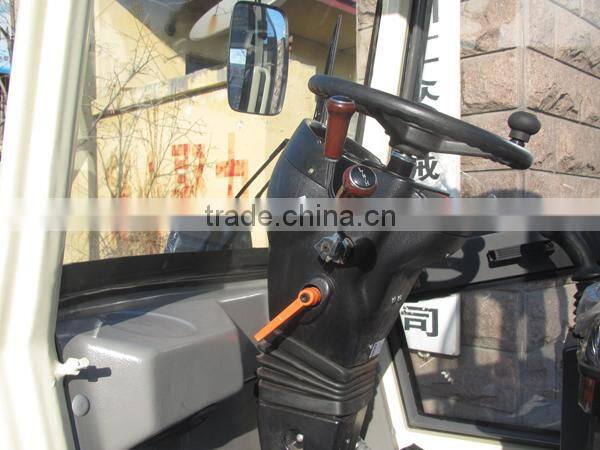

new adjustable insturments

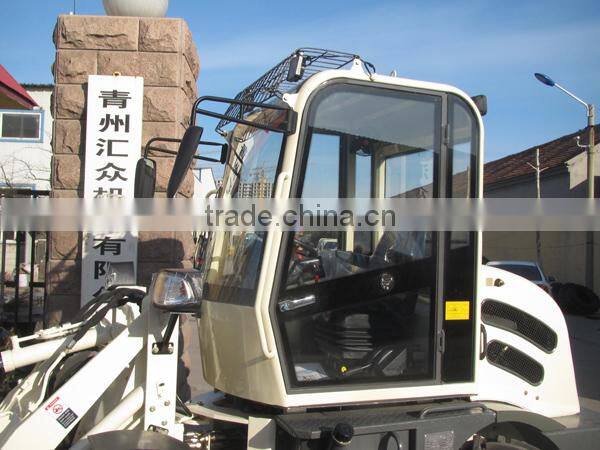

new cabin for Europe

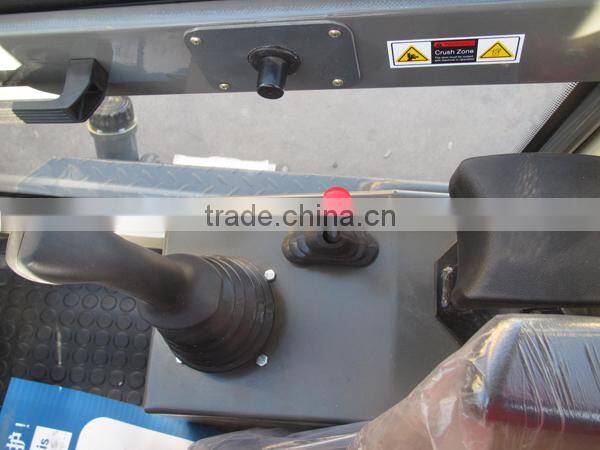

Joystick for wheel loader

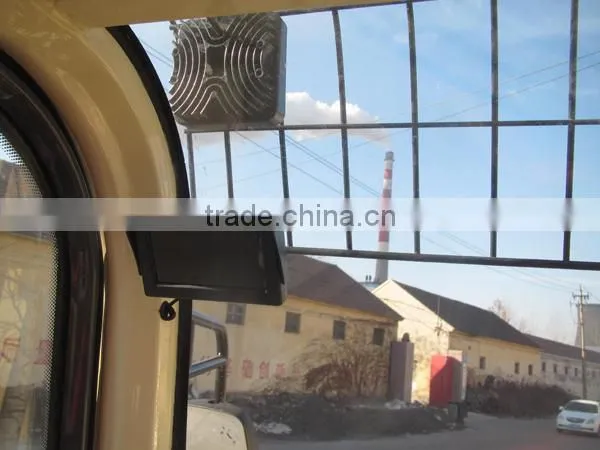

Rear view camera for wheel loader
