HZM Cheap Mini Loader Zl608 With ce

Name: HZM Cheap Mini Loader Zl608 With ce
Brand: HUIZHONG
SKU: 143314876
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

JN908

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number JN908

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4700X1200X2280

Rated Load 1000kg

Certification CE

Warranty 1year

Specifications

CE mini wheel loader
price very competitive
Optional hydaulic quick change

HZ 2014 new design mini multifunction wheel loader with ce and ISO9001

This model wheel loader is our new design wheel loader with brand new appearance,different cabin ,new painting technology and different performance.

Specifications of ZL08F mini wheel loader

Specification	overall weight(kg)	2000
	L×W×H(mm)	4720x1200x2280
	rated bucket capacity(m³)	0.4
	Rated load(kg)	1000
	Maximum dump height (mm)	2350
	Bucket indicator	Yes
	Max. breakout force(KN)	-

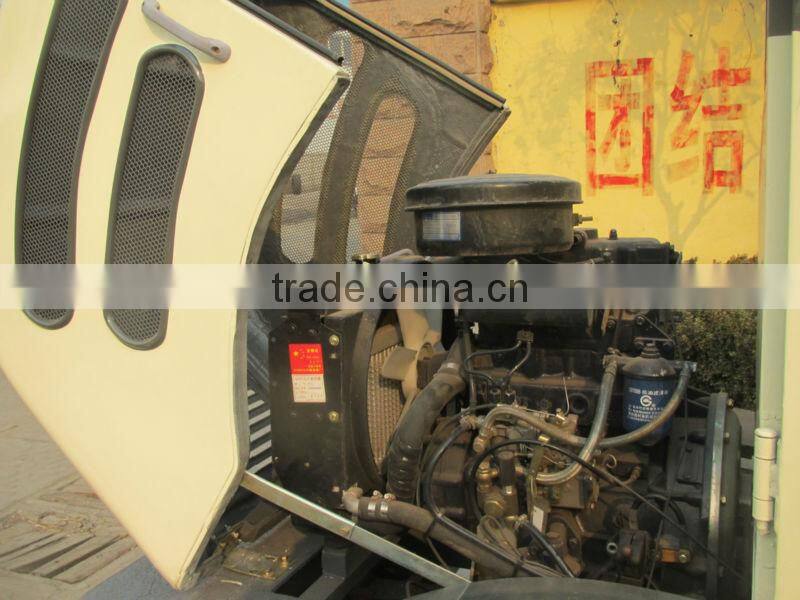

Engine	Model	changchai ZN385Q
	Type	In-line arrangement, single cyclinder,direct-injection,Water cooling, four-stroke
	Rated power(	20KW
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	-
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	-
Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBF32
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	3400
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	650-16
Tyres	Optional wide tyres	31x15.5-15
