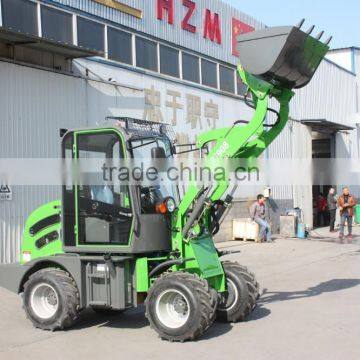

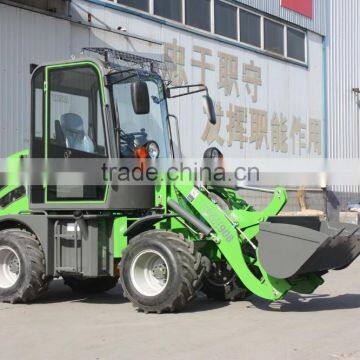

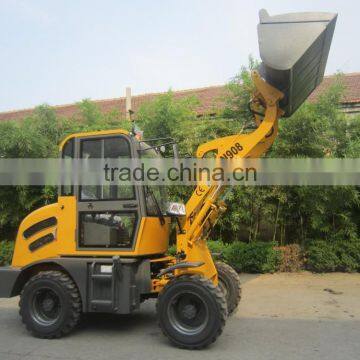

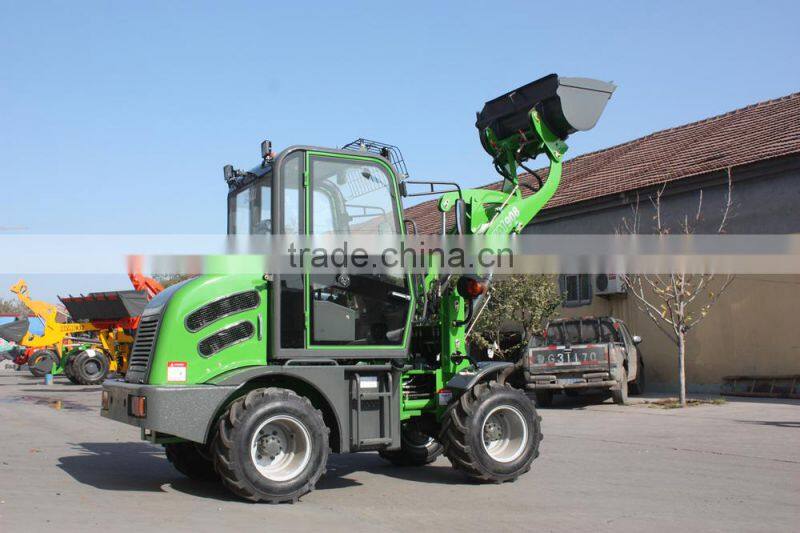

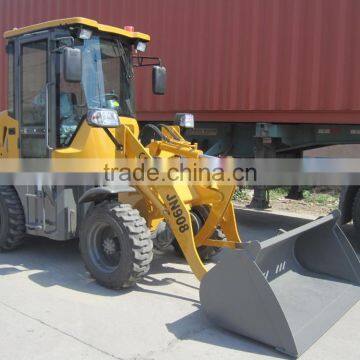

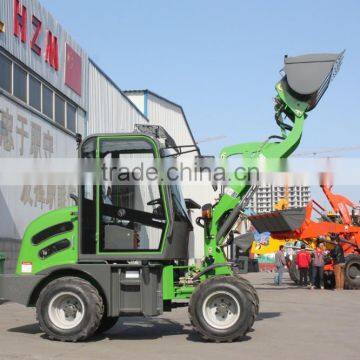

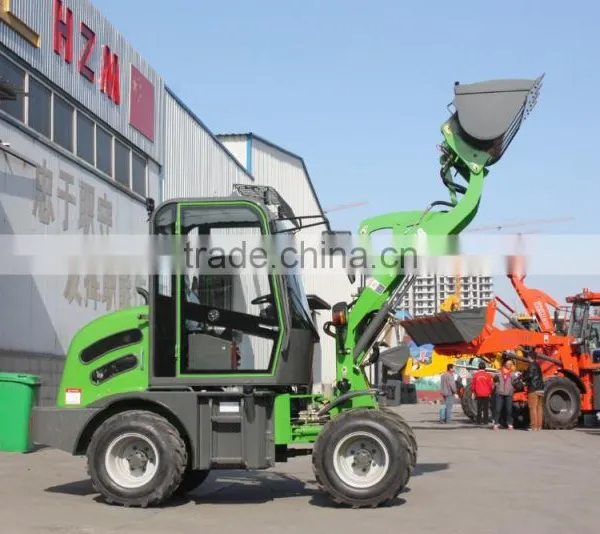

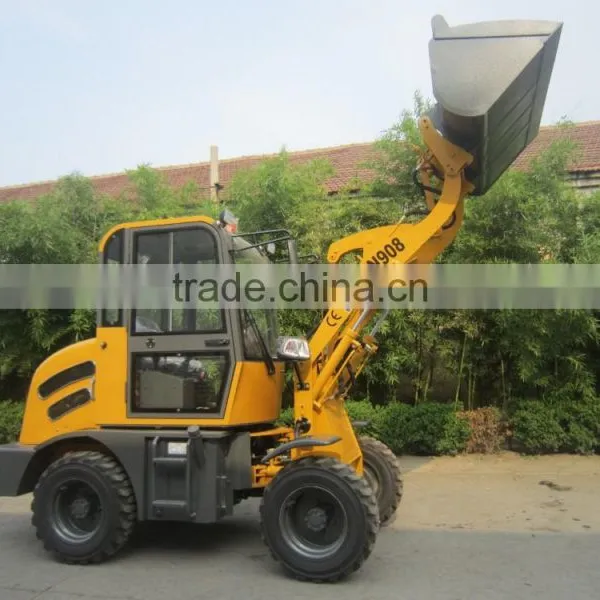

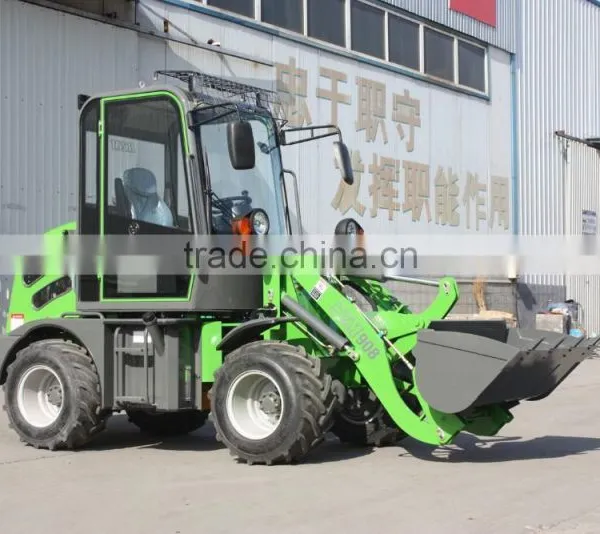

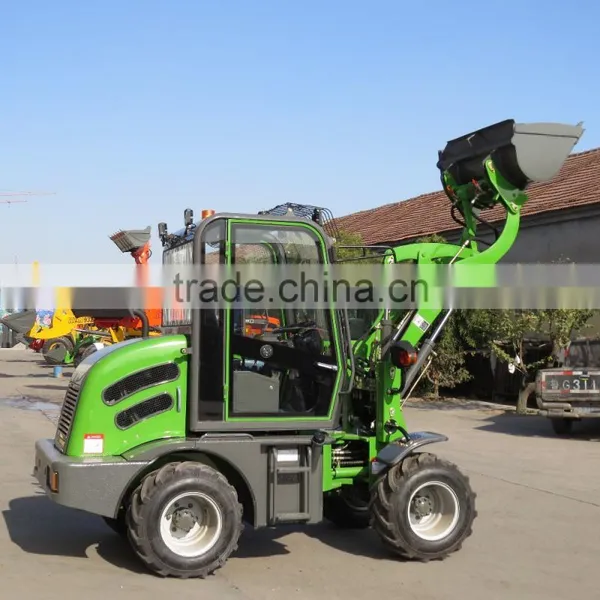

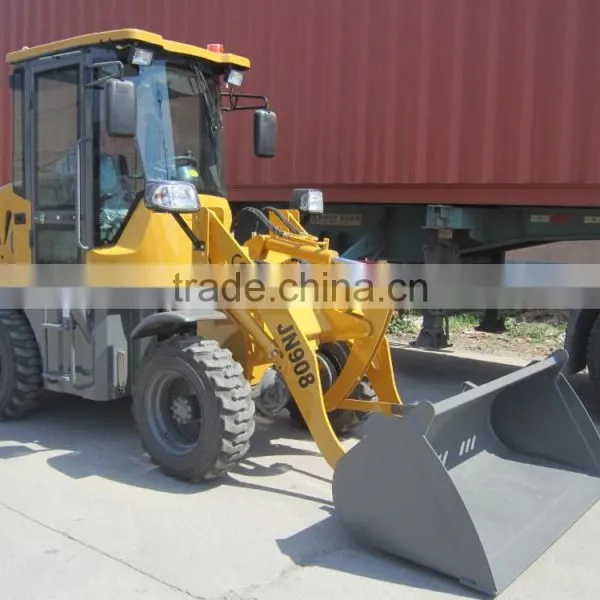

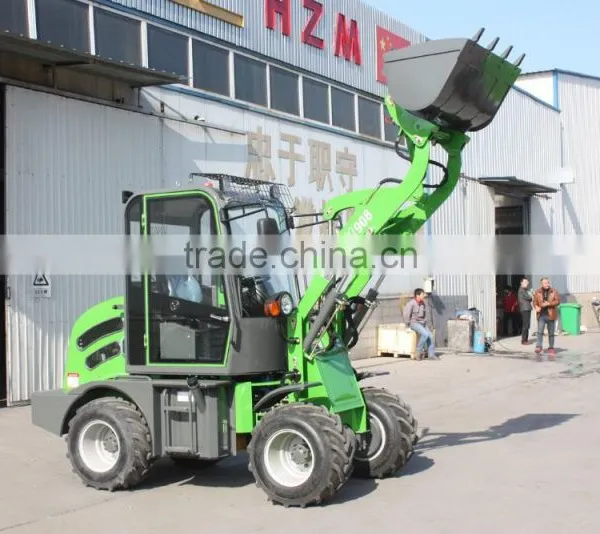

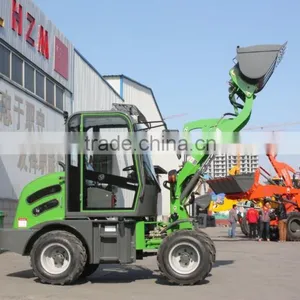

HZM 0.8t Cheap Mini Loader HZM908 With ce

Name: HZM 0.8t Cheap Mini Loader HZM908 With ce
Brand: HUIZHONG
SKU: 143314870
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

JN908

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number JN908

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4200X1470X2460

Rated Load 800kg

Certification CE,ROPS,ISO9001

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CE mini wheel loader
price very competitive
Optional hydaulic quick change

HZ 2014 new design mini multifunction wheel loader with ce and ISO9001

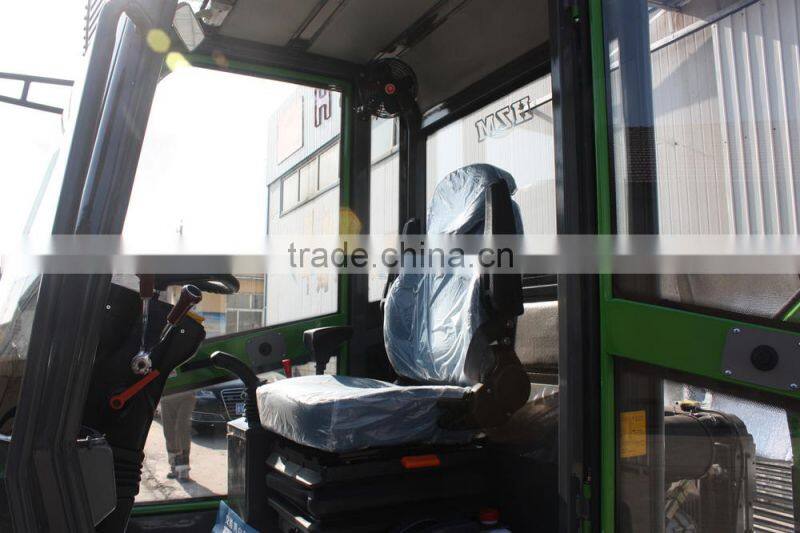

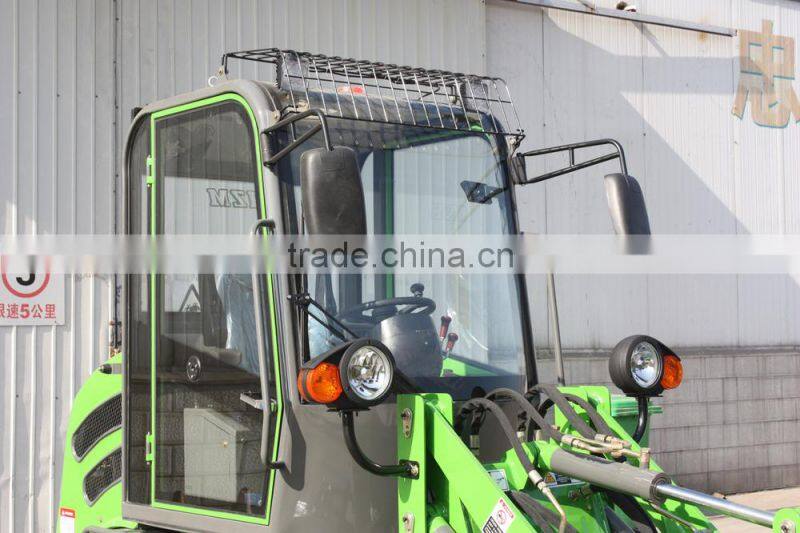

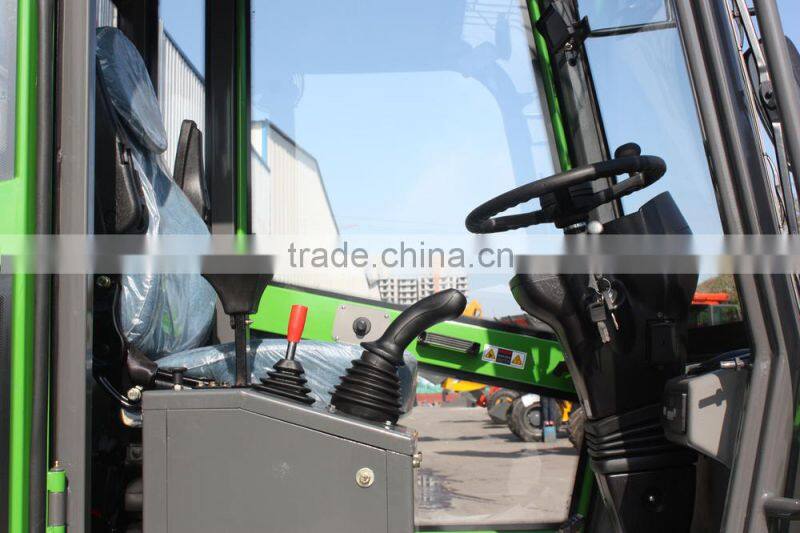

This model wheel loader is our new design wheel loader with brand new appearance,different cabin ,new painting technology and different performance.

Specifications of HZM908 mini wheel loader

Specification	overall weight(kg)	2500
	L×W×H(mm)	4200x1470x2460
	rated bucket capacity(m³)	0.25-0.5
	Rated load(kg)	800
	Maximum dump height (mm)	2350
	Bucket indicator	Yes
	Max. breakout force(KN)	-
Engine	Model	changchai ZN385Q
	Type	In-line arrangement, single cyclinder,direct-injection,Water cooling, four-stroke
	Rated power(	20KW
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	-
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	-

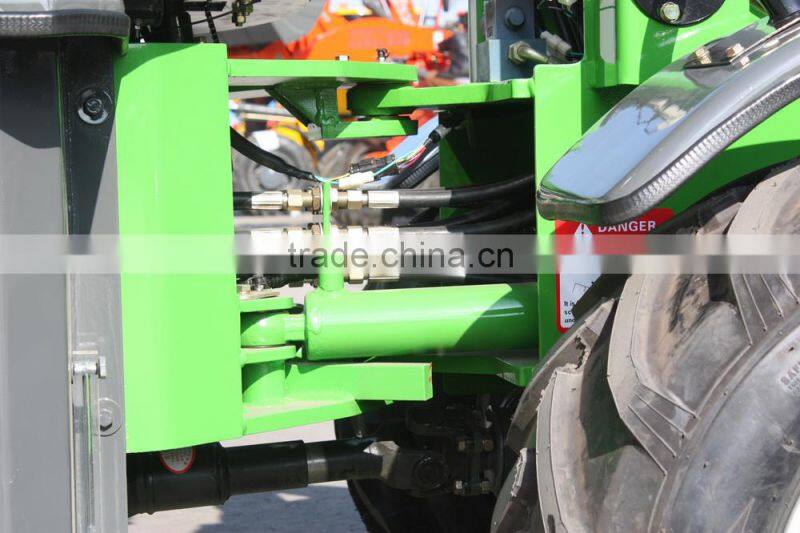

Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBF32
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	3400
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	10-16.5
Tyres	Optional wide tyres	31x15.5-15
