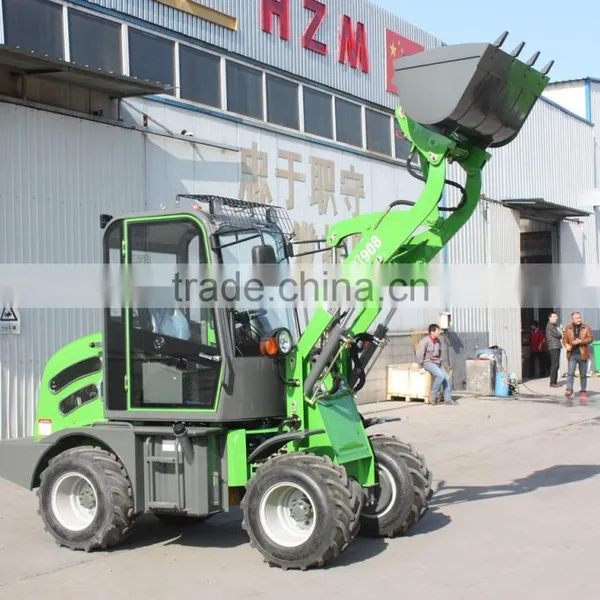

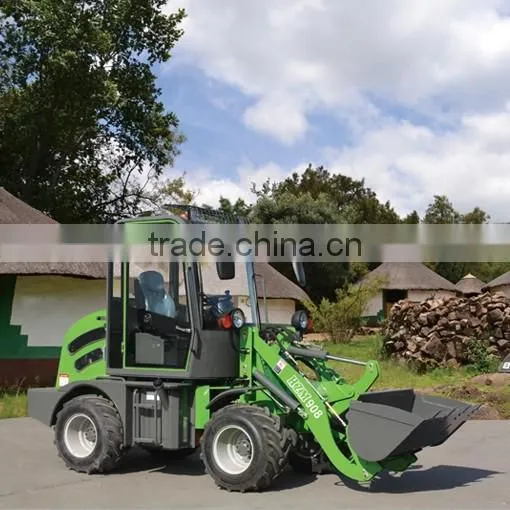

2015 HZM Popular 0.8t Mini Loader HZM 908 With CE

Name: 2015 HZM Popular 0.8t Mini Loader HZM 908 With CE
Brand: HUIZHONG
SKU: 143314860
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

HZM908

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number HZM908

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4200X1470X2460

Rated Load 800kg

Certification CE,ROPS,ISO9001

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

1.2015 New style popular model HZM 908.

2.Closed hydrostatic system has the feature of the lower energy consumption

3.Quick coupler adapt for different attachments- pallet fork,4in1,snow bucket etc.

4.LED lamp,varta battery,E-mark seat,electrical float control.

5.NEW cabin design with big space, have a comfortable operation environment.

Specifications of HZM908 mini wheel loader

Specification	overall weight(kg)	2500
	L×W×H(mm)	4200x1470x2460
	rated bucket capacity(m3)	0.25-0.5
	Rated load(kg)	800
	Maximum dump height (mm)	2350
	Bucket indicator	Yes
	Max. breakout force(KN)	-
Engine	Model	changchai ZN385Q
	Type	In-line arrangement, single cyclinder,direct-injection,Water cooling, four-stroke
	Rated power	20KW
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	-
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	-
Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBF32
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	3400
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	10-16.5
Tyres	Optional wide tyres	31x15.5-15
