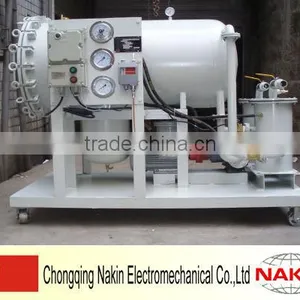

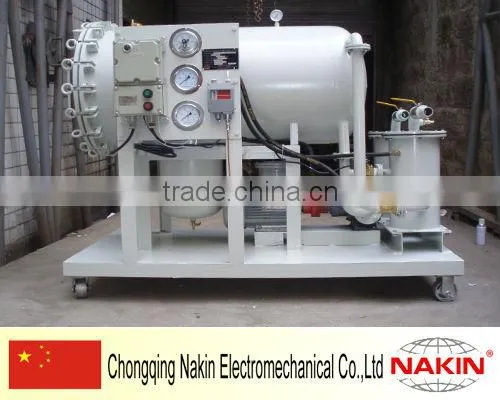

Help CenterLiquid Filtering With Coalescence Separation
Related Products
-
TJ-10 Oil Purifier to Separate Water and GasolineUS$ 6,000 - 20,000MOQ: 1 Set -
TPM-10 Vacuum Oil Seperator MachineUS$ 5,000 - 20,000MOQ: 1 Set
-
TPM-30 Vacuum Oil Separator PlantUS$ 5,000 - 20,000MOQ: 1 Set
-
TJ-100 Gasoline Filtration SystemUS$ 6,000 - 20,000MOQ: 1 Set
-
Ship Heavy Diesel Fuel Oil Centrifuge MachineUS$ 10,000 - 10,000MOQ: 1 Set
Specifications
liquid filtering:1,special for fuel oil
2,without heating
3.explosion proof
Liquid filtering Application:
Series TJ liquid filtering adopts advanced polymer fibre as the filter medium combined with the special oil-water separating device to make TJ is good at breaking emulsion and filtering. It can effectively separate water from oil. Series TJ can work online with turbine system for breaking emulsion and filtering, also it can separate particles and mass water from light oil. Series TJ works without heating and vacuum source, less power consumption, low operation cost. Series TJ fuel filter use of trolley structure, light weight, easy operation.
Liquid filtering Technical Parameters:
Index name |
unit |
TJ-10 |
TJ-20 |
TJ-30 |
TJ-50 |
TJ-80 |
TJ-100 |
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4800 |
6000 |
Working pressure |
MPa |
≤ 0.3 |
|||||
Demulsifying value |
min |
≤15/min(GB/F7035) |
|||||
Water content |
ppm |
≤100 |
|||||
Cleanness |
|
≤ NAS 6 GRADE |
|||||
Power supplier |
|
380V 50HZ 3Ph(As per user’s option) |
|||||
Working noise |
dB(A) |
≤65~80 |
|||||
Total power |
Kw |
0.75 |
0.75 |
0.75 |
2.2 |
2.2 |
3 |
Weight |
kg |
80 |
90 |
105 |
135 |
150 |
185 |
