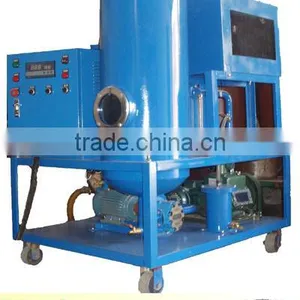

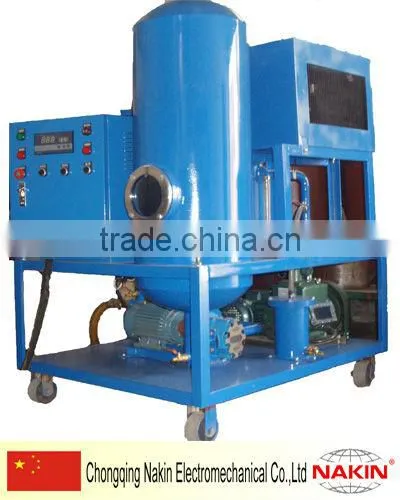

Help CenterTPM-10 Vacuum Oil Seperator Machine
Related Products
-
TPM-30 Vacuum Oil Separator PlantUS$ 5,000 - 20,000MOQ: 1 Set -
TJ-100 Gasoline Filtration SystemUS$ 6,000 - 20,000MOQ: 1 Set
-
Ship Heavy Diesel Fuel Oil Centrifuge MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
No Heating System Oil Filter With Vacuum Pump/ Oil Purification SystemUS$ 3,000 - 4,500MOQ: 1 Set
-
Explosion-proof Heavy Furnace Fuel Oil Purifier MachineUS$ 100 - 10,000MOQ: 1 Set
Specifications
oil seperator:1,Cold steel material
2,High vacuum
3,Good performance
4,Easy operation
Oil seperator Application:
TPM vacuum oil water separator is specially for separating water for oil, it adopts vacuum distillation technology, and can quickly and completely remove water from oil. TPM oil seperator is a good filter machine for cooking oil, biodiesel oil,
engine oil, lube oil, insulating oil, turbine oil etc. For cooking oil, according to the treated oil usages, we can choose different machine body. For edible usage, we suggest to choose stainless steel body.
TPM oil seperator is good economic benefits, widely applied in petroleum, food, chemical, mining,
metallurgy, electric power, transportation, machinery manufacturing, railway etc.
Oil seperator Features:
1. TPM vacuum filtration system adopts the vacuum distillation technology to remove water, odor, alcohol and volatilization materials to inhibit acid value and peroxide value increases.
2. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
3. Unique and advanced dewatering System.
4. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Oil seperator Working principle
Under vacuum and negative pressure state, the water can be vaporized in lower temperature. The higher vacuum state; the lower of water boiling point, the water is vaporized faster. Even under same temperature, water can be moved faster under higher vacuum state. Oil goes into heater, the Oil temperature goes up when heated. Then oil goes in to vacuum separator to become oil film by the film sprayer. In vacuum separator, water becomes vapor, and discharged by vacuum pump. After that, oil is transferred to out.
Oil seperator Main Spare Parts Introduction
1. Gas and water separator: the water in heated oil become vapor in vacuum tank, then the vapor become liquid water due the low temperature in Gas and water separator. The Gas and water separator not only reducing the temperature of vacuum pump, but also it can reduce the frequency of changing vacuum pump oil so that it can enlarge the lifetime of vacuum pump.
2. cooling liquid of Cooler of vacuum pump(note: water-cooling vacuum pump has such device, wind-cooling vacuum pump does not have such device): it is used to cool the vacuum pump body to protect the vacuum pump’s damage from high temperature.
3. Vacuum pump: exhaust the gas in vacuum tank.
4. Oil pump: transfer the oil which is exhausted the gas to outside.
More details scan QR code:
