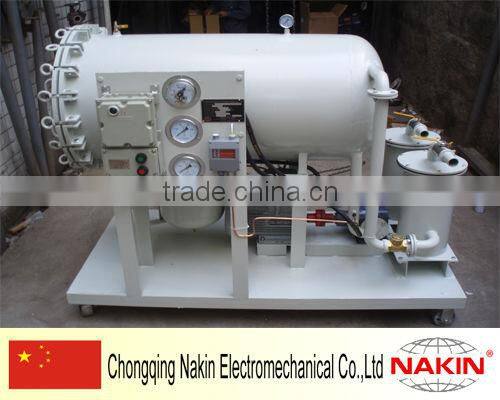

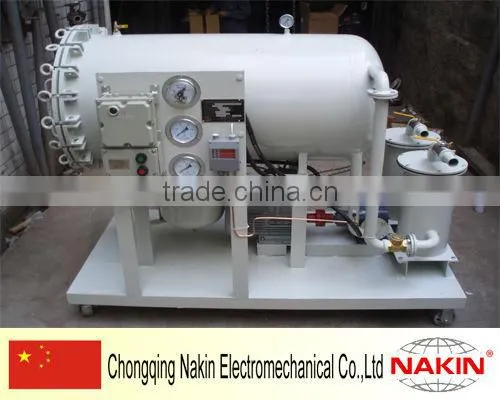

Help CenterTJ-100 Gasoline Filtration System
Related Products
-
Ship Heavy Diesel Fuel Oil Centrifuge MachineUS$ 10,000 - 10,000MOQ: 1 Set -
No Heating System Oil Filter With Vacuum Pump/ Oil Purification SystemUS$ 3,000 - 4,500MOQ: 1 Set
-
Explosion-proof Heavy Furnace Fuel Oil Purifier MachineUS$ 100 - 10,000MOQ: 1 Set
-
Waste Diesel Fuel Oil Filtration Dehydration MachineUS$ 2,000 - 15,000MOQ: 1 Set
-
Gasoline Oil Cleaning Equipment Specially Designed to Separate Water By Using Coalescence-Separation DeviceUS$ 1 - 10,000MOQ: 1 Set
Specifications
gasoline filtration system:1,special for fuel oil
2,without heating
3.explosion proof
Gasoline filtration system Application:
Series TJ gasoline filtration system adopts advanced polymer fibre as the filter medium combined with the special oil-water separating device to make TJ is good at breaking emulsion and filtering. It can effectively separate water from oil. Series TJ can work online with turbine system for breaking emulsion and filtering, also it can separate particles and mass water from light oil. Series TJ works without heating and vacuum source, less power consumption, low operation cost. Series TJ gasoline filtration system use of trolley structure, light weight, easy operation.
Gasoline filtration system Technical Parameters:
Index name |
unit |
TJ-10 |
TJ-20 |
TJ-30 |
TJ-50 |
TJ-80 |
TJ-100 |
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4800 |
6000 |
Working pressure |
MPa |
≤ 0.3 |
|||||
Demulsifying value |
min |
≤15/min(GB/F7035) |
|||||
Water content |
ppm |
≤100 |
|||||
Cleanness |
|
≤ NAS 6 GRADE |
|||||
Power supplier |
|
380V 50HZ 3Ph(As per user’s option) |
|||||
Working noise |
dB(A) |
≤65~80 |
|||||
Total power |
Kw |
0.75 |
0.75 |
0.75 |
2.2 |
2.2 |
3 |
Weight |
kg |
80 |
90 |
105 |
135 |
150 |
185 |
More details scan QR code:
