Help CenterMulti-stage Transformer Oil Centrifuging Machine
Related Products
-
ISP Oxidize Transformer Oil Cleaning Machine:<75-110KV>US$ 5,600 - 9,000MOQ: 1 Unit -
SG Duplex-infrared Liquid Transformer Oil Reclamation MachineUS$ 7,800 - 12,000MOQ: 1 Unit
-
R-ZYD Single-cylinder Transformer Oil Recovry, Oil Recondition SystemUS$ 8,000 - 17,000MOQ: 1 Unit
-
(ZY-3000L/D) Flash Point Insulating Oil Filtration MachineUS$ 6,800 - 9,500MOQ: 1 Unit
-
Power Station Using: Water Evaporation Transformer Oil Recovery FacilityUS$ 6,000 - 13,300MOQ: 1 Unit
HVAC Transformer Oil Purifier Machinery
ZYD Double-stage vacuum transformer/ insulating oil purifier is a high efficiency machine, particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and used transformer oil. This oil recycling system has double-stage vacuum system, two vacuum separating chambers, efficient oil film sprayer, can quickly remove water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil and improve oil’s dielectric strength effectively. The oil machine can make sure electric equipments working safely and normally. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. It can be used for filtration of more than 110V substation live line work onsite.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value < 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
Technical Parameters:
Index name |
unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
||
Flow rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
||
Heating power |
Kw |
30 |
30 |
95 |
110 |
125 |
136 |
151 |
||
Total power |
Kw |
35.5 |
37.5 |
104 |
121 |
135 |
148 |
168 |
||
Working vaccum |
MPa |
-0.08- -0.099 |
||||||||
Working pressure |
MPa |
< 0.4 |
||||||||
Temperature range |
C |
20 – 80 |
||||||||
Dielectric strength |
KV |
> 70 |
||||||||
Water content |
ppm |
< 3 |
||||||||
Gas content |
% |
< 0.1 |
||||||||
Particles size |
u |
< 1 |
||||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||||
Working noise |
dB(A) |
<65-85 |
||||||||
Advantages
Comparing with single stage transformer oil purifier, Series ZYD oil purifier can increase the effectiveness more than three times,more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum

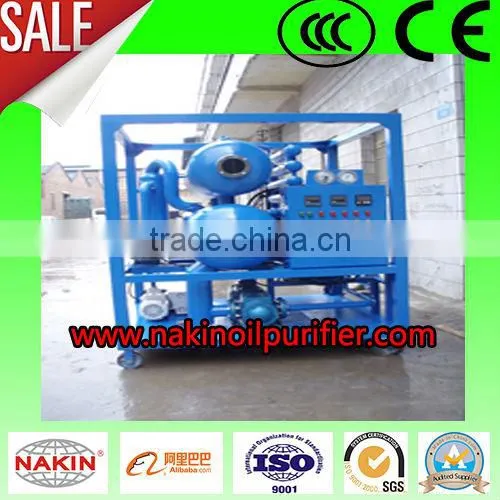

ZYD PHOTOS SHOW
YELLOW
BLUE
GRAY
Dark Slate Grey
Weather-proof Transformer Oil Purifier
ZYD OIL PURIFIER PACKING, LOADING AND DELIVERY
Other main products
Series BZ Insulating Oil Recycling Machine
Series TYA Lubricating Transformer Oil Purifier
Series TY Turbine Transformer Oil Filtration Machine
Series JZS/JZC Engine Oil Recycling Machine
Series TPF Edible Oil Reclamation Machine
Series TYK Phosphate Ester Fire-resistant Transformer Oil Filter
Series IIJ-II Insulating Oil Dielectric Strength Tester
Series NKEE Oil Moisture Content Sensor
user’s options:
1.Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2.Choosing different kinds vacuum pump, oil pump, and electric parts.
3.Anti-explosion (EX type) electric parts.
4.Equips moisture sensor and dielectric strength tester on the machine.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.
