Specifications

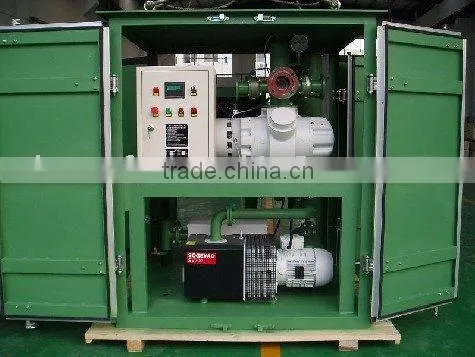

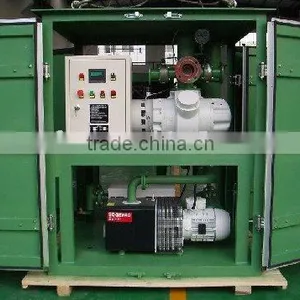

Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.....ZYD Double-stage vacuum transformer/ insulating oil purifier is a high efficiency machine, particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and used transformer oil. This oil recycling system has double-stage vacuum system, two vacuum separating chambers, efficient oil film sprayer, can quickly remove water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil and improve oil’s dielectric strength effectively. The oil machine can make sure electric equipments working safely and normally. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. It can be used for filtration of more than 110KV substation live line work onsite.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value < 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
Technical Parameters:
Index name |
unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
||
Flow rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
||
Heating power |
Kw |
30 |
30 |
95 |
110 |
125 |
136 |
151 |
||
Total power |
Kw |
35.5 |
37.5 |
104 |
121 |
135 |
148 |
168 |
||
Working vaccum |
MPa |
-0.08- -0.099 |
||||||||
Working pressure |
MPa |
< 0.4 |
||||||||
Temperature range |
C |
20 – 80 |
||||||||
Dielectric strength |
KV |
> 70 |
||||||||
Water content |
ppm |
< 3 |
||||||||
Gas content |
% |
< 0.1 |
||||||||
Particles size |
u |
< 1 |
||||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||||
Working noise |
dB(A) |
<65-85 |
||||||||
