HY-DY10 laser power supply for RECI S2 CO2 laser tube 90W, EFR laser tube
- 300 Piece / Pieces per Month
- Shenzhen Guangzhou Shanghai Qingdao Ningbo and so on
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
P18 LCD Intelligent Laser Power Supply for reci laser tube Z8
-
HY-T60 universal laser power supply, for 40W/50W/60W CO2 laser tube, acrylic material laser marking machine power supply
-
RECI P12 intelligent laser power supply 100W with LCD display, for RECI s2 CO2 laser tube
-
HY-T50 universal laser power supply, for 30W/40W/50W CO2 laser tube, acrylic material laser marking machine power supply
-
common co2 laser power supply 40w 50w 60w 80w 100w 150w
-
DY10 DY13 DY20 RECI POWER SOURCE FOR LASER ENGAVER
Product Details
| Place of Origin | Shandong, China | Brand Name | Hongyuan | |
| Model Number | HY-DY10 |
Product Description

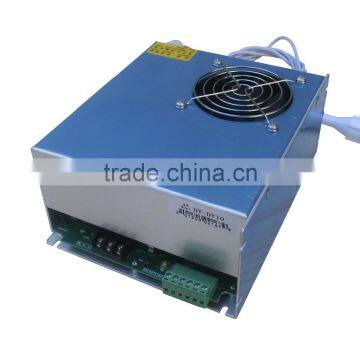

HY-DY10 laser power supply for RECI S2 CO2 laser tube 90W, also compatible with EFR laser tube
HY-DY10, HY-DY13 and HY-DY20 are specially designed for RECI S series laser tubes, including S2, S4, S6 and S8. These series of power supplies can work wellwith high-power laser tubes. They prolong the service life of laser tubes and increase the output power. HY-DY10, HY-DY13 and HY-DY20 can also work well with EFR laser tube.
Cutting model and engrving model selectable: for cutting machine, it has good power stability and adaptability; for engraving machine, it has quick response and ideal engraving effect. Significantly prolong the service life of laser tubes.
Easy control, high or low level control available: With TTL level, it can control the start and stop of laser. There is protection switch for checking the water supply and ventilation.
Easy to control laser power: Laser pwer can be controlled by both 0~5V analog signals and PWM signals.
The power supply has its own open circuit protection: When the power supply is properly grounded, it can work shortly in open circuit conditions, so that the the laser power supply is not damaged by the breaking laser tubes and the lifespan of the power supply is prolonged.
The power supply may contain feed back interface, which can be used in closed closed-loop control and for testing the actual operating current.
Newly-added fuction: fast field determing wheter the laser tube or power supply is damaged.
Application area: engraving and cutting acrylic; engraving and cutting cloth; engraving and cutting ABS; engraving and cutting rubber, and so on.
DY10 and Reci2 Laser Tube Connection diagram
DY10 Power Supply Instruction
I. Instruction for sub-connection wire of the control end
1 2 3 4 5 6 5V TH TL WP G IN |
2) TH. TL refers to high and low power level respectively,and WP refers to water protection.
3) Footer 5 G refers to ground, and 6 refers to input end.
4) When connecting the control plate, connect the light signal with footer 2 inthe case of high power level light-emitting, (footer 3 for low power level light-emitting), connect the ground-wire with footer 5, connect footer 6 with power control analog signal, and make short circuit for footer 4 and 5.
5) PWM can also be used in footer 6, but the pulse peak is required to reach 5V, and the frequency should be above 20K.
6) For testing: 3, 4 and 5 are in short circuit (or 4, 5 are in short circuit and 3, 5are connected to switch),the potentiometer center is connected with 6 IN, and the two other ends are connected to 5V and ground (1 and 5) respectively.
7) The high power level controls the light, 1 and 2 are connected, and 4 and 5 are in water protection.
8) It is not proposed to control laser power with high-frequency modulation, because it will have impact on the service life of the laser.
9) The model is applicable to W2 laser, it is necessary to regulate and use the current according to the laser instructions.
10) The ammeter is concatenated to the cathode line.
II.Instruction for power wire
Footer 1 Ground | footer 2 footer3 AC 220V 50HZ 10A |
III. Instruction for laser connection wire
1) The positive red-line with high voltage is connected to the laser tail
2) The negative white-line is connected to laser output window
IV. Current limitation
To limit the working current, the potentiometer (lies in the underside of the power supply) should be rotated in counterclockwise. Limit the maximum output current as it is regulated in the operating instruction. The working current should be limited before delivery.
V. Linear scale between input signal and the output current
Turn around the potentiometer, the linear scale will be changed: for example, when the input signal is 0-5V, the output current is 0-32mA.Or when the input signalis 0-2V, the output signal is 0-32mA.
Note: when the potentiometer is turned down too much, the real output current willbe brought down by the same input signal.
VI. Using current
The use standard for our power supply is under 220V, 50Hz. The fluctuation of the input voltage and frequency will affect the working current provided by the power supply, the effection is linear relative. The unstable of the input voltage will affect the output power of the laser tube. The fluctuation of the input voltage has no effection on the lifespan of the laser if only the current provided by the power supply is not over the current limitation.
